Autel Ultra S2 + 3 Years Updates
Autel Ultra S2 + 3 Years Updates

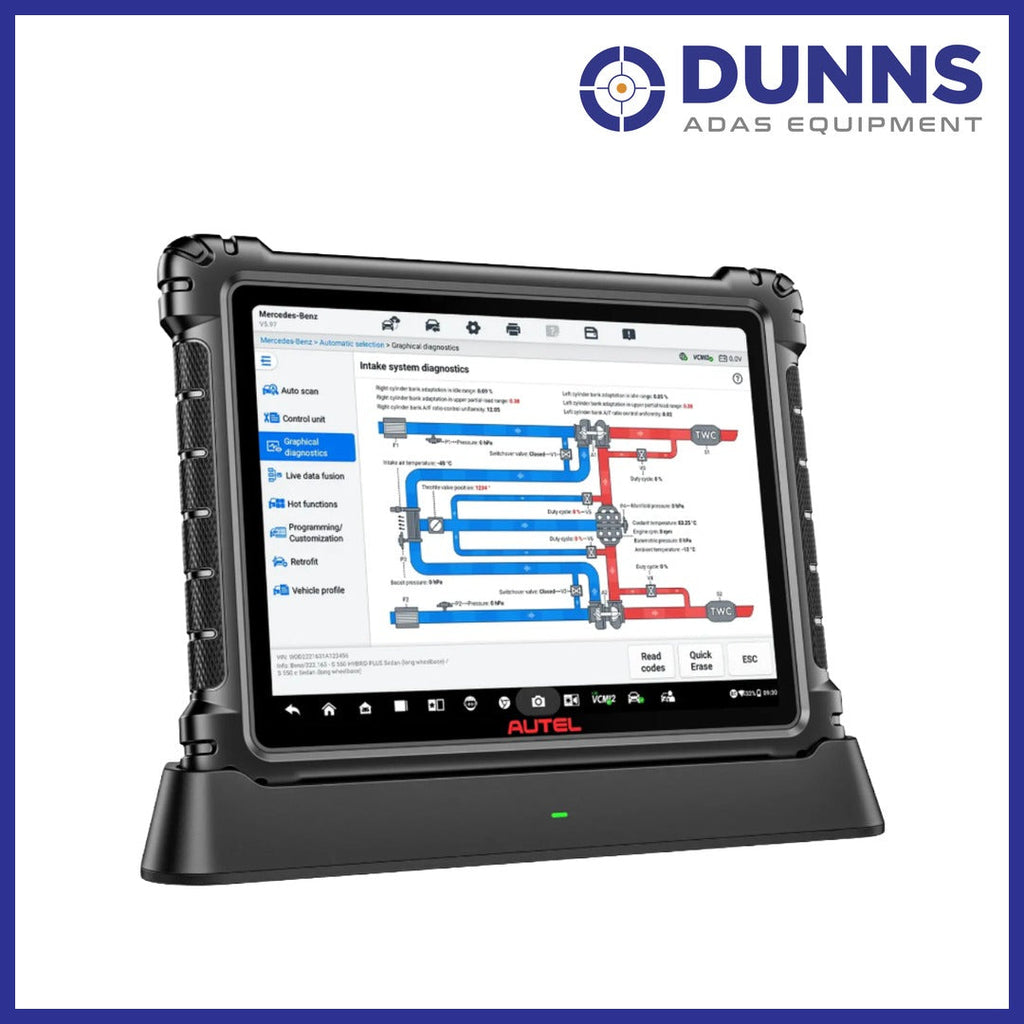

The Autel MaxiSys Ultra S2 is Autel's most advanced flagship diagnostic tool, combining a massive 13.7-inch Corning Gorilla Glass touchscreen, a 2.7GHz octa-core processor, 512GB SSD, 12GB RAM and the advanced VCMI2 5-in-1 communication and measurement device. It delivers OE-level diagnostics, ECU coding and programming, integrated oscilloscope testing, AI voice assistance and Topology 3.0 network mapping.
- 13.7-inch 2176×1600 TFT-LCD Corning Gorilla Glass touchscreen, Android 13, 2.7GHz octa-core, 12GB RAM, 512GB SSD
- VCMI2 5-in-1: VCI, 4-channel oscilloscope, multimeter, waveform generator and CAN Bus check — connecting via Wi-Fi 6
- AI Max voice assistant — hands-free voice command for navigation and diagnostics
- Topology 3.0 dynamic network mapping with colour-coded all-system status and component location
- ECU coding, programming, re-flashing, active tests, adaptations and enhanced PID analysis with graphing
- 80+ US, Asian and European vehicle brands from 1996 onwards — DoIP, CAN FD, D-PDU, RP1210, J2534 and Mega CAN
- 18,000mAh battery (8 hours), 16MP rear camera, 5MP front camera, oil- and water-resistant screen

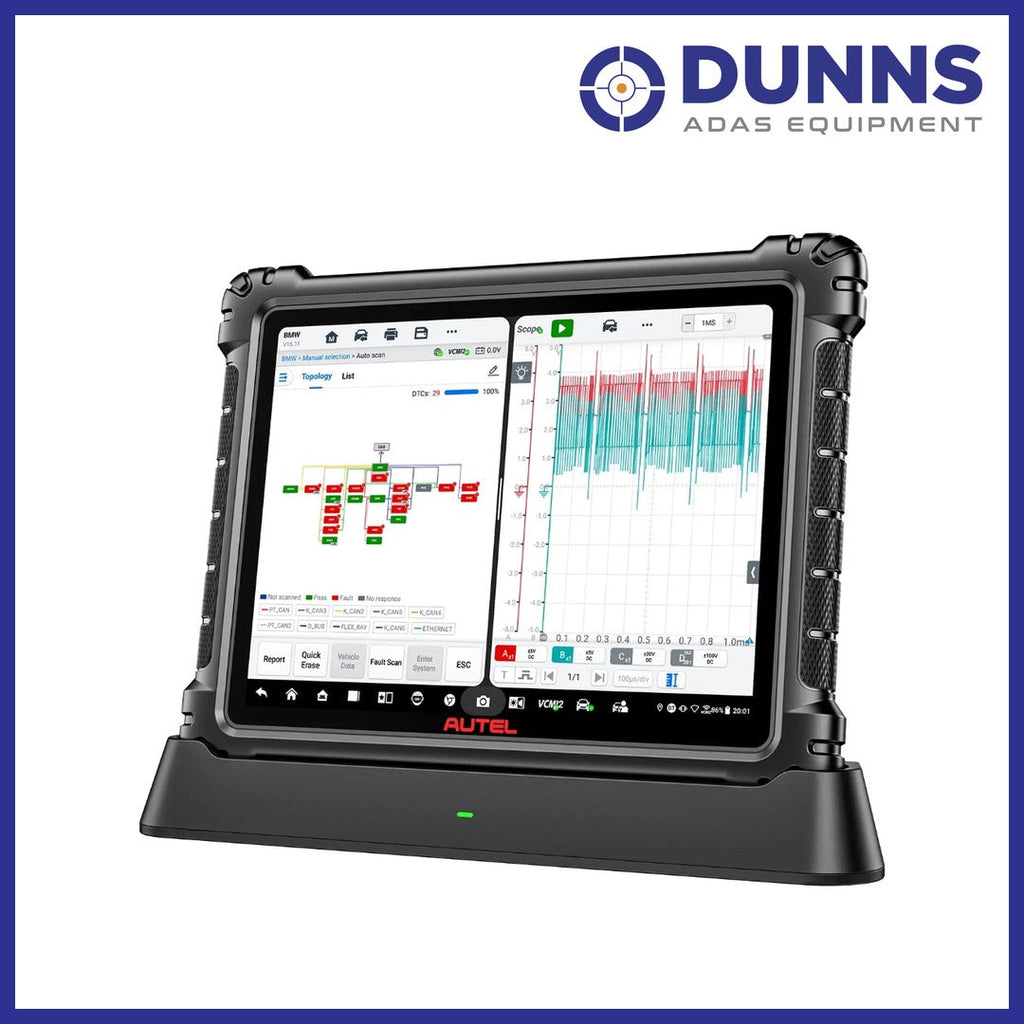

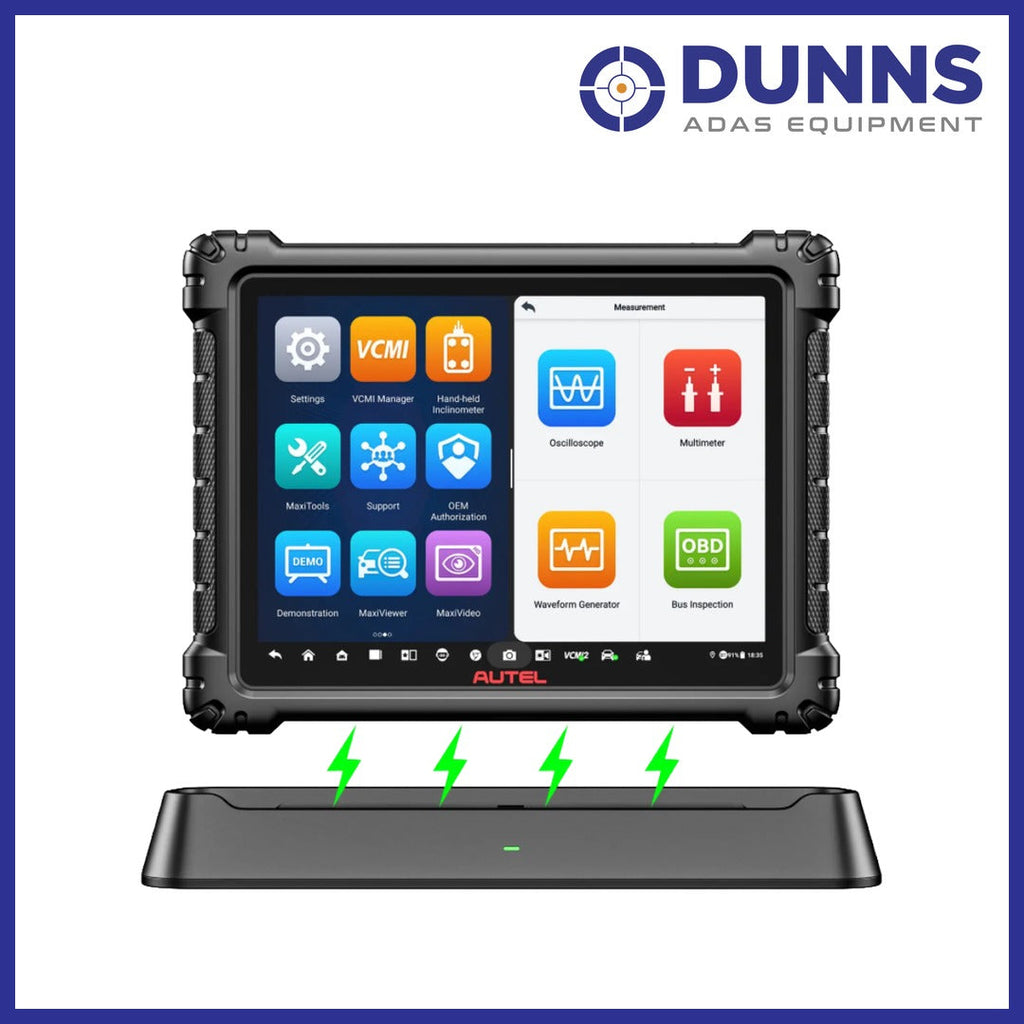

- Fast-charge docking station included as standard (European Edition exclusive)
- Autel Cloud scan report sharing, Remote Expert compliant, FCA Secure Gateway approved
- ADAS calibration: optional software upgrade + Autel Calibration System required
Why Choose the Ultra S2?
The Ultra S2 carries Autel's fastest processor, largest-ever SSD, biggest screen and the most advanced VCMI2 interface. The European Edition brings exclusive features: fast-charge docking station, AI Max voice assistant, 13.7-inch super-large display, 512GB SSD and Wi-Fi 6 VCMI2 connectivity.

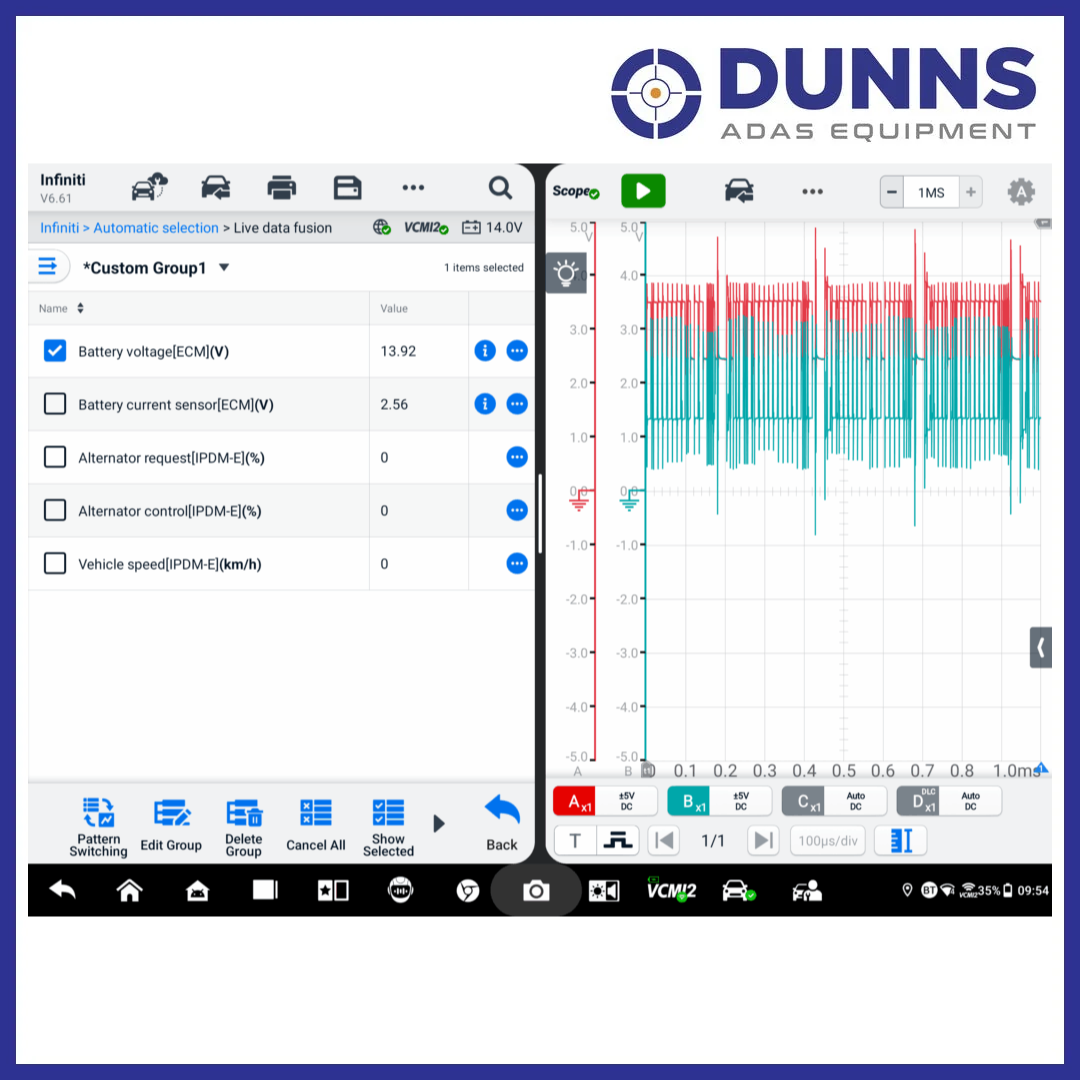

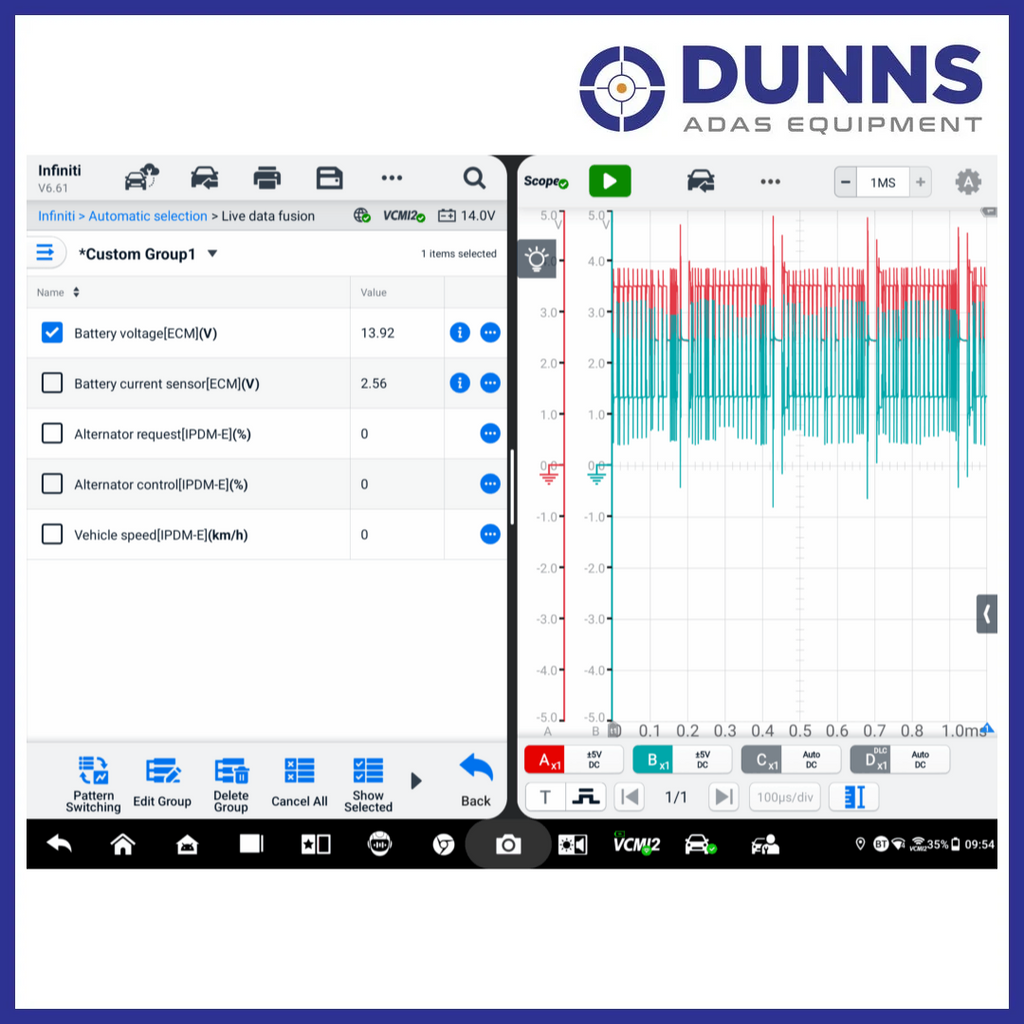

VCMI2 — 5-in-1 Vehicle Communication & Measurement
Combines VCI, 4-channel oscilloscope, multimeter, waveform generator and CAN Bus check in one device. Connects via Wi-Fi 6 and supports D-PDU, RP1210, CAN FD, J2534 and DoIP protocols.

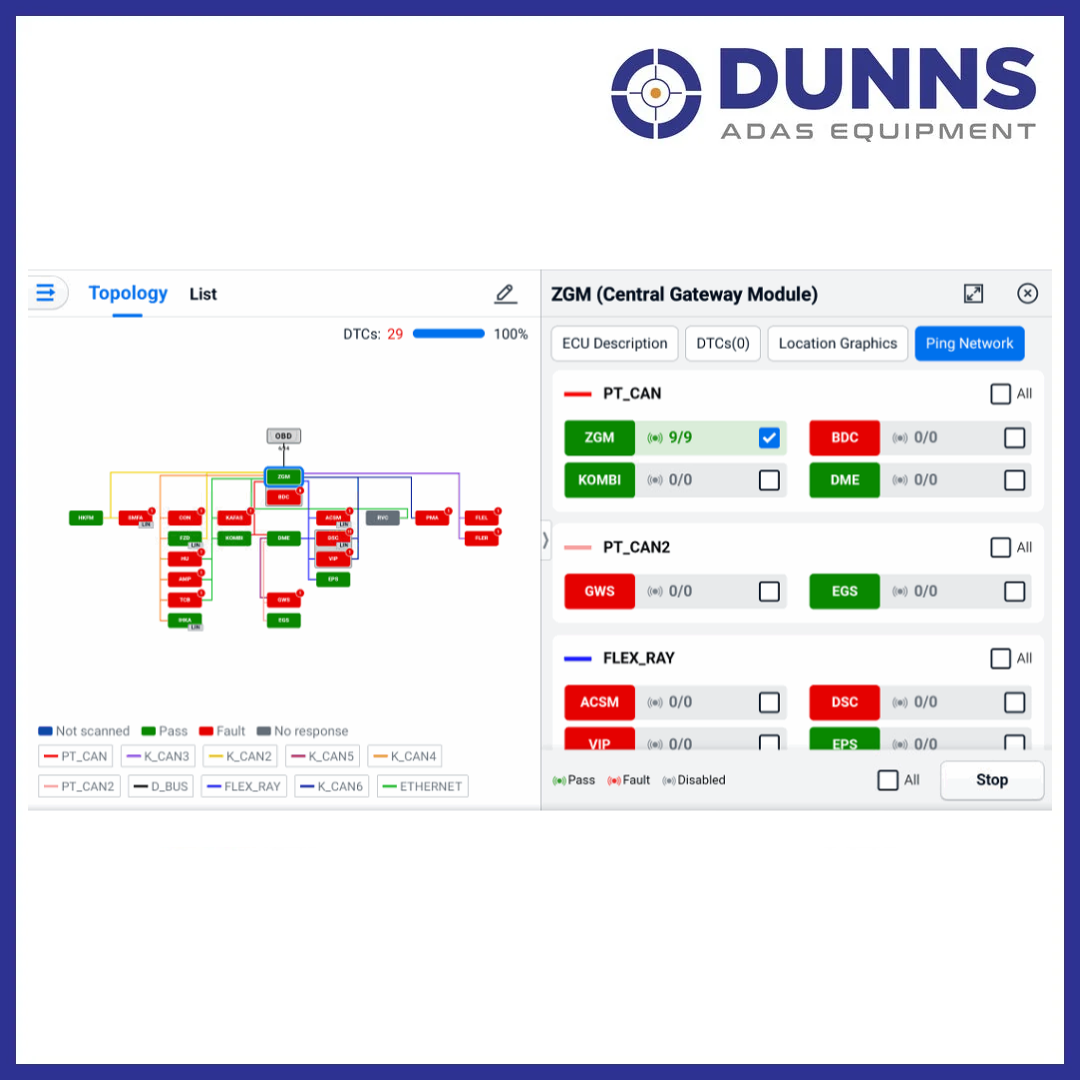

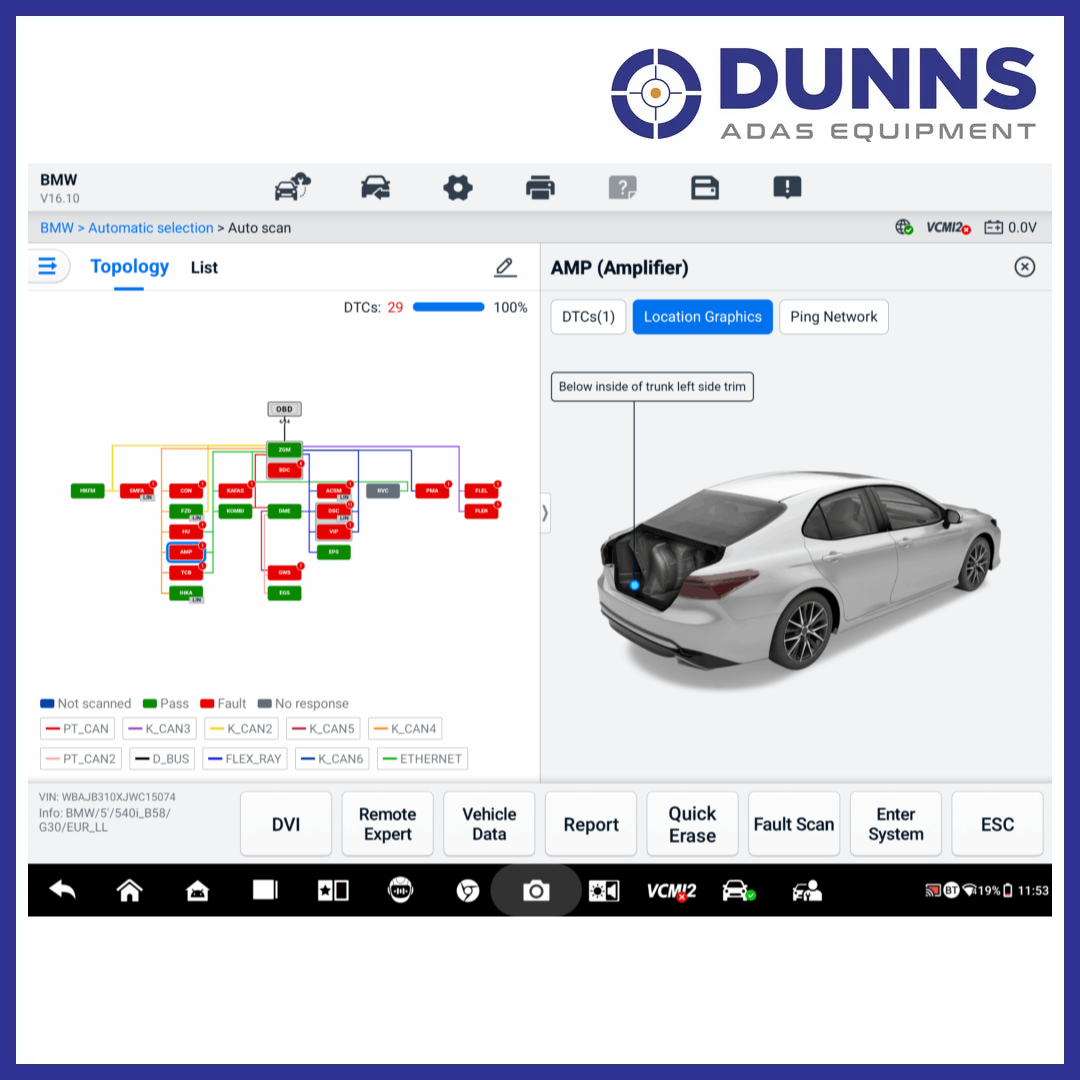

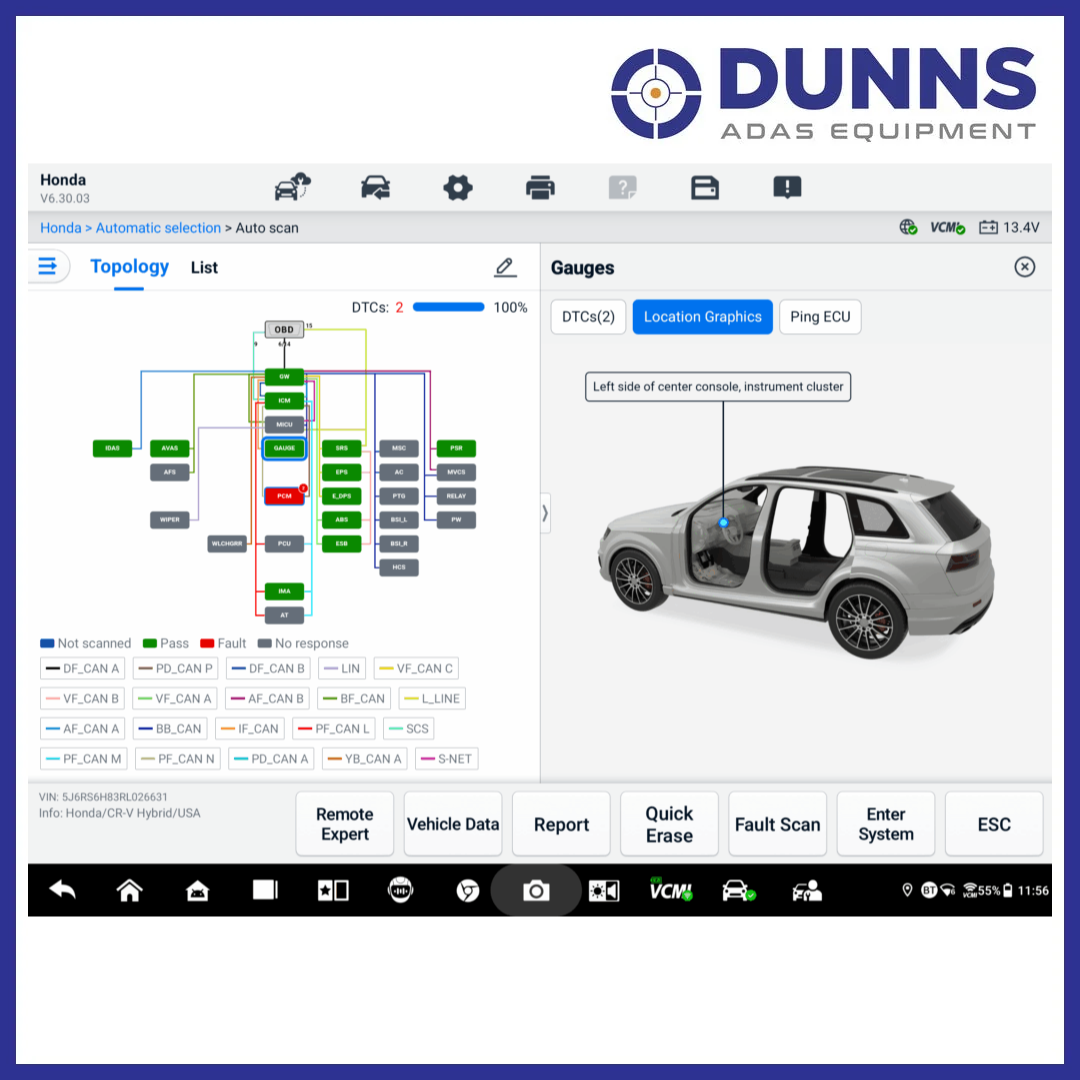

Topology 3.0 — Dynamic Network Mapping
Colour-coded all-system status screen with component location, giving an OE-style view of the vehicle's entire electronic network.
OE-Level Diagnostics — 80+ Vehicle Brands
- Read and erase fault codes across all systems; live data streaming, graphing and enhanced PID analysis
- Bi-directional active tests; ECU coding, programming and re-flashing; adaptations and matching
- ScanVIN via camera; enhanced PreSCAN and PostSCAN reporting
Bundle Options
- Ultra S2 — 3 years of software updates. From £5,250 + VAT
- Ultra S2 + Security Gateway Unlock (12 months) — adds full FCA vehicle access. From £5,649 + VAT
- Ultra S2 + Security Gateway Unlock + ADAS Unlock — adds ADAS calibration software (Autel Calibration System required). From £6,399 + VAT
Technical Specifications
| Specification | Detail |
|---|---|
| Display | 13.7" 2176×1600 TFT-LCD Corning Gorilla Glass |
| Processor | 2.7GHz Octa-core |
| OS | Android 13 |
| RAM | 12GB |
| Storage | 512GB SSD |
| Battery | 18,000mAh (8 hours) |
| Cameras | 16MP rear + 5MP front |
| VCI | VCMI2 via Wi-Fi 6 |
| VCMI2 functions | VCI, oscilloscope, multimeter, waveform generator, CAN Bus check |
| Protocols | DoIP, CAN FD, D-PDU, RP1210, J2534, Mega CAN |
| Vehicle coverage | 80+ brands, 1996 onwards |
| AI assistant | AI Max — hands-free voice command |
| Topology | Topology 3.0 dynamic network mapping |
| Secure Gateway | Yes |
| ADAS support | Optional — software upgrade + Autel Calibration System required |
| Docking station | Fast-charge docking station included |
| Warranty | 2-year warranty |
| Updates | 3 years OTA software updates |
See the Ultra S2 in Action
Watch the Autel Ultra S2 demo video on YouTube
UK Spec, Warranty & Support
Supplied directly by Dunns Automotive — official Autel UK distributor — with warranty & support from Autel UK.
