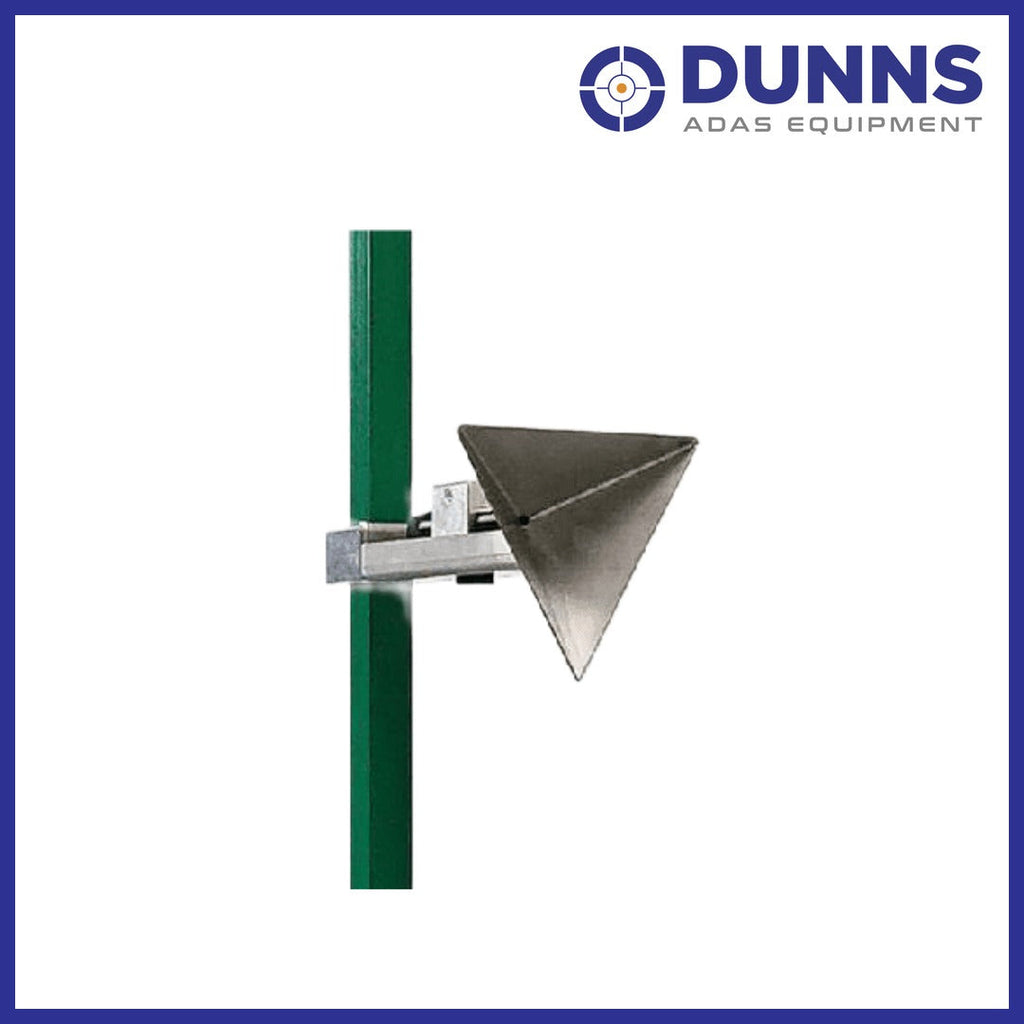

Hella Radar Kit III Reflectors CSC4-04 + CSC4-05

The Hella Gutmann Radar Kit III (CSC 4-04 + CSC 4-05) is a precision radar calibration accessory for the Hella Gutmann CSC-Tool ADAS system. Supplied with both the CSC 4-04 and CSC 4-05 radar reflectors, it provides broader manufacturer-specific vehicle coverage for front and rear radar sensor calibration following collision repair, sensor replacement, suspension work or when manufacturer tolerances have been exceeded.

• Includes both CSC 4-04 and CSC 4-05 radar reflectors for broader, manufacturer-specific vehicle coverage
• Calibrates front and rear radar sensors following collision repair, sensor replacement, suspension work or when tolerances are exceeded

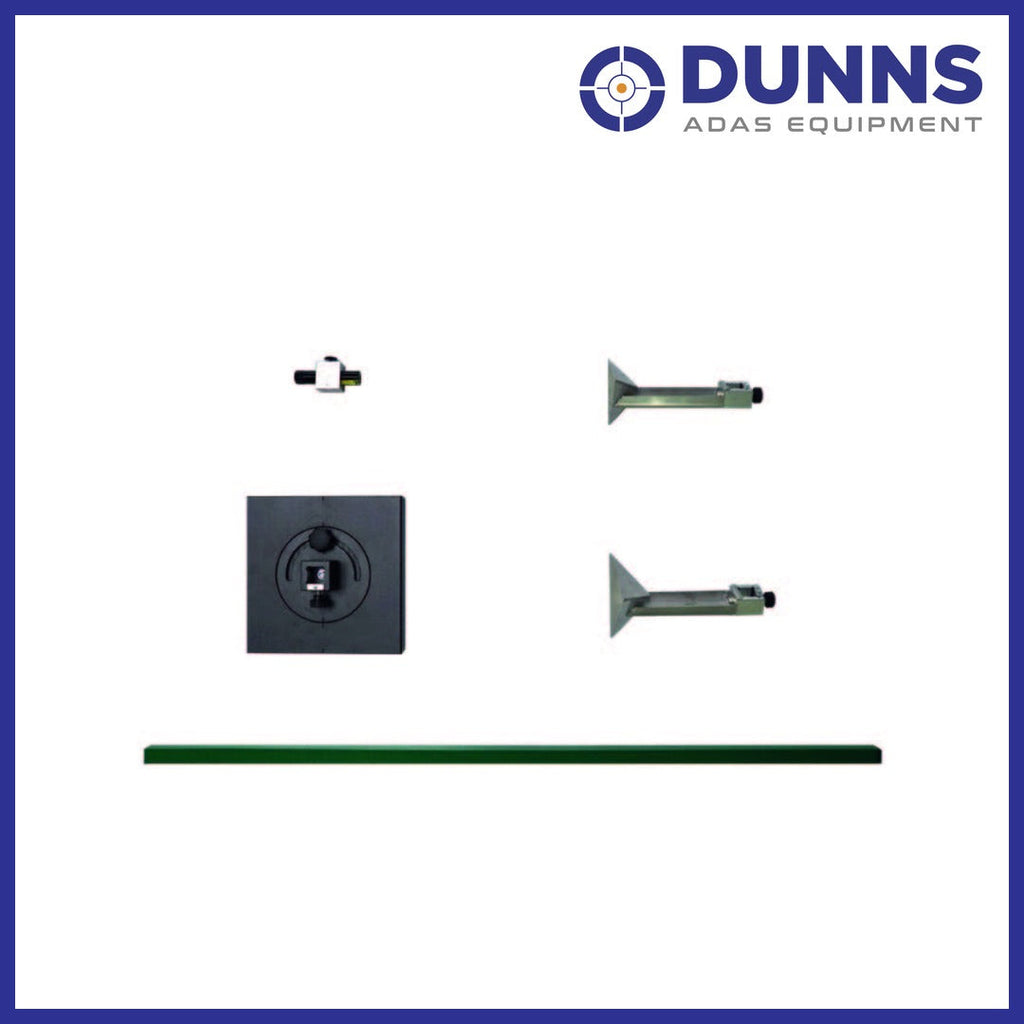

• Comprises a rotating stand base with glass-fibre reinforced plastic rod, a precision laser module and two exchangeable radar reflectors
• Reflector is positioned at the base support using grooves and adjusted to the height shown on the diagnostic device
• Supports guided, manufacturer-compliant calibration procedures via Hella Gutmann mega macs software
• Compatible with the CSC-Tool / CSC-Tool SE and CSC-Tool Mobile
• Genuine Hella Gutmann accessory — Part No. 8PZ 015 269-051

Compatible Rigs: Hella Gutmann CSC-Tool SE | Hella Gutmann CSC-Tool Mobile
