Hella Rear Cam Kit I VAG Panel Set CSC 3-01

⚠️ REQUIRED PARTS: These panels are designed to fit on the Hella Rear Cam Kit I Additional Profile. The Rear Cam Kit I Basic Profile frame is also required. Both must be purchased separately — this listing is for the VAG panel set only. A Hella Gutmann diagnostic device running mega macs software is also required.

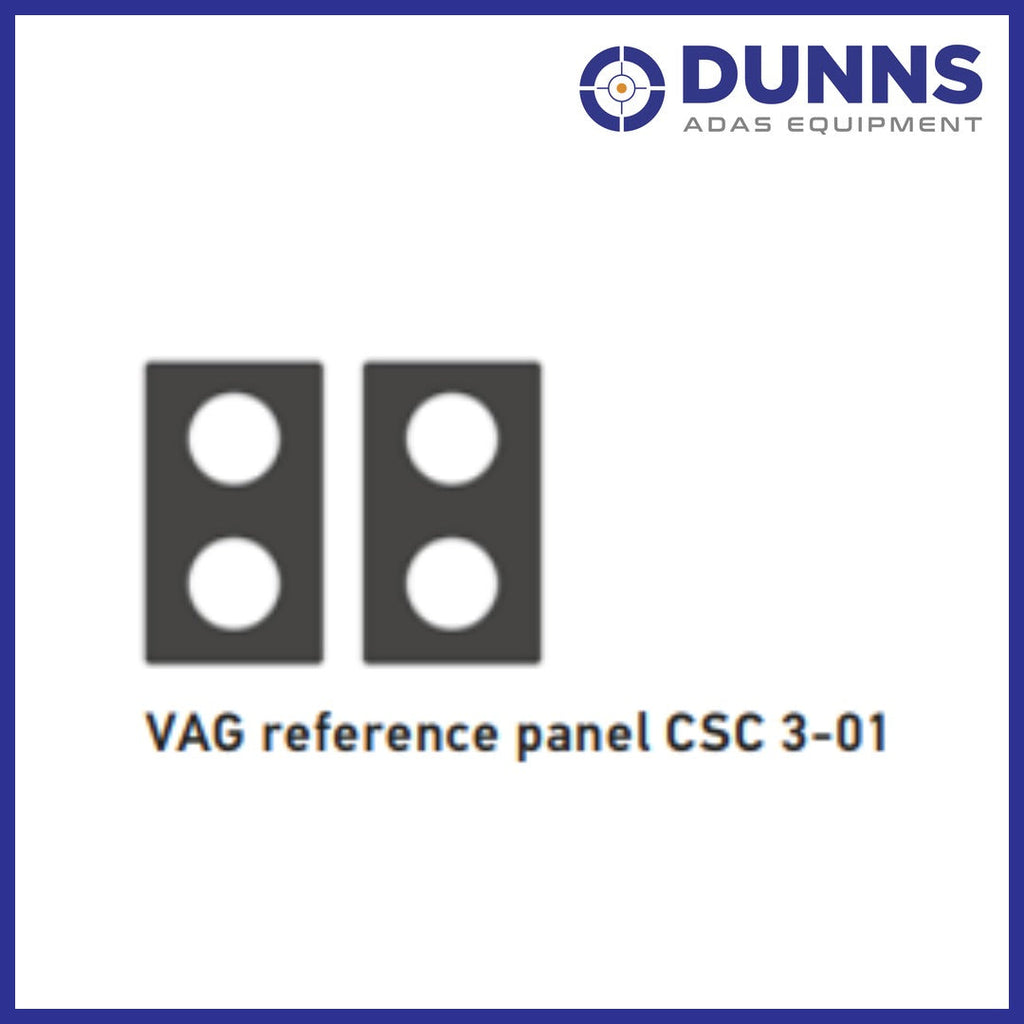

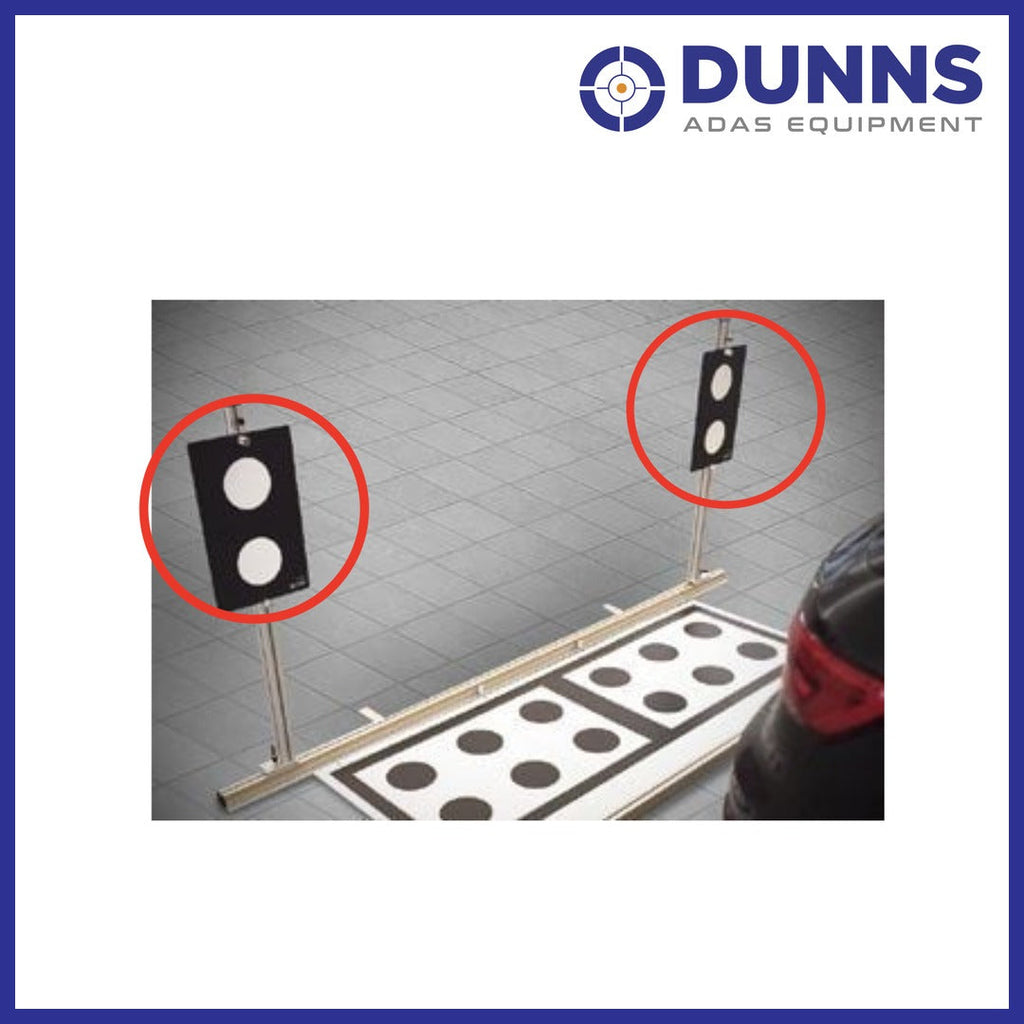

The Hella Gutmann Rear Cam Kit I VAG Panel Set (CSC 3-01) is a dedicated calibration target set for accurately calibrating the rear-view and surround-view (360-degree) camera systems on Volkswagen Group (VAG) vehicles. Mounted onto the Additional Profile frame extension, it ensures manufacturer-compliant camera alignment to the vehicle's geometric driving axis after repairs, screen replacements or sensor work.

• VAG-specific calibration target panel set (CSC 3-01) — fits the Rear Cam Kit I Additional Profile
• Calibrates rear-view and surround-view (360-degree) camera systems on Volkswagen Group models (VW, Audi, SEAT, Skoda)
• Ensures precise camera alignment to the vehicle's geometric driving axis (rear axle) per manufacturer specifications
• Supports reversing-aid and autonomous parking camera functions across an expanding range of VAG vehicles
• Compatible with the full Hella Gutmann CSC rig range: CSC-Tool / CSC-Tool SE and CSC-Tool Mobile
• Works in conjunction with mega macs diagnostic software for guided, manufacturer-compliant calibration procedures
• Genuine Hella Gutmann accessory — Part No. 8PZ 010 611-681

What You Also Need

• Hella Rear Cam Kit I Basic Profile — the base frame (required)
• Hella Rear Cam Kit I Additional Profile — the frame extension these panels mount onto (required)

Compatible Rigs: Hella Gutmann CSC-Tool SE | Hella Gutmann CSC-Tool Mobile
