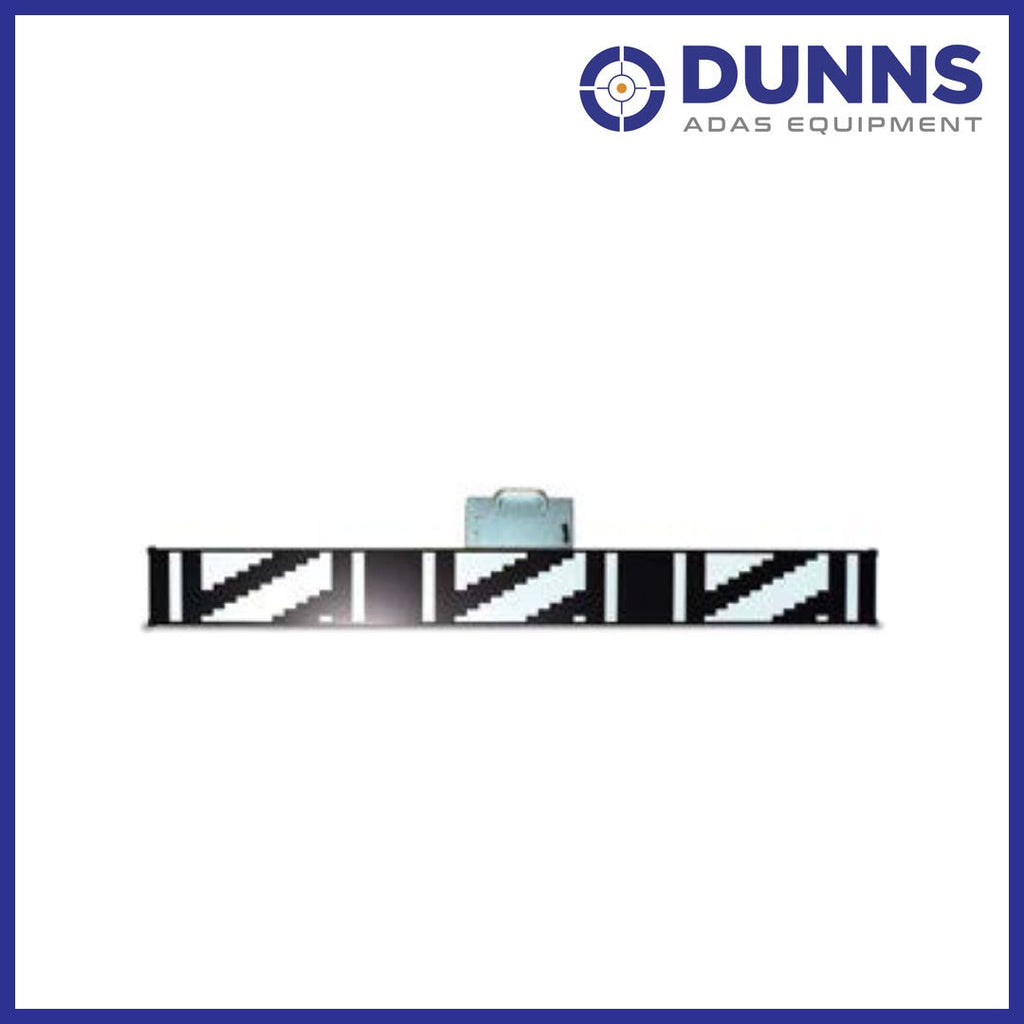

Hella Laser Sensor Reference Panel Audi CSC 5-01

⚠️ COMPATIBILITY: This reference panel is designed for use with the Hella Gutmann CSC-Tool calibration system. Compatible with the CSC-Tool / CSC-Tool SE and CSC-Tool Mobile. A Hella Gutmann diagnostic device running mega macs software is required. Supplied as the reference panel only — a compatible CSC-Tool base unit and mounting are required separately.

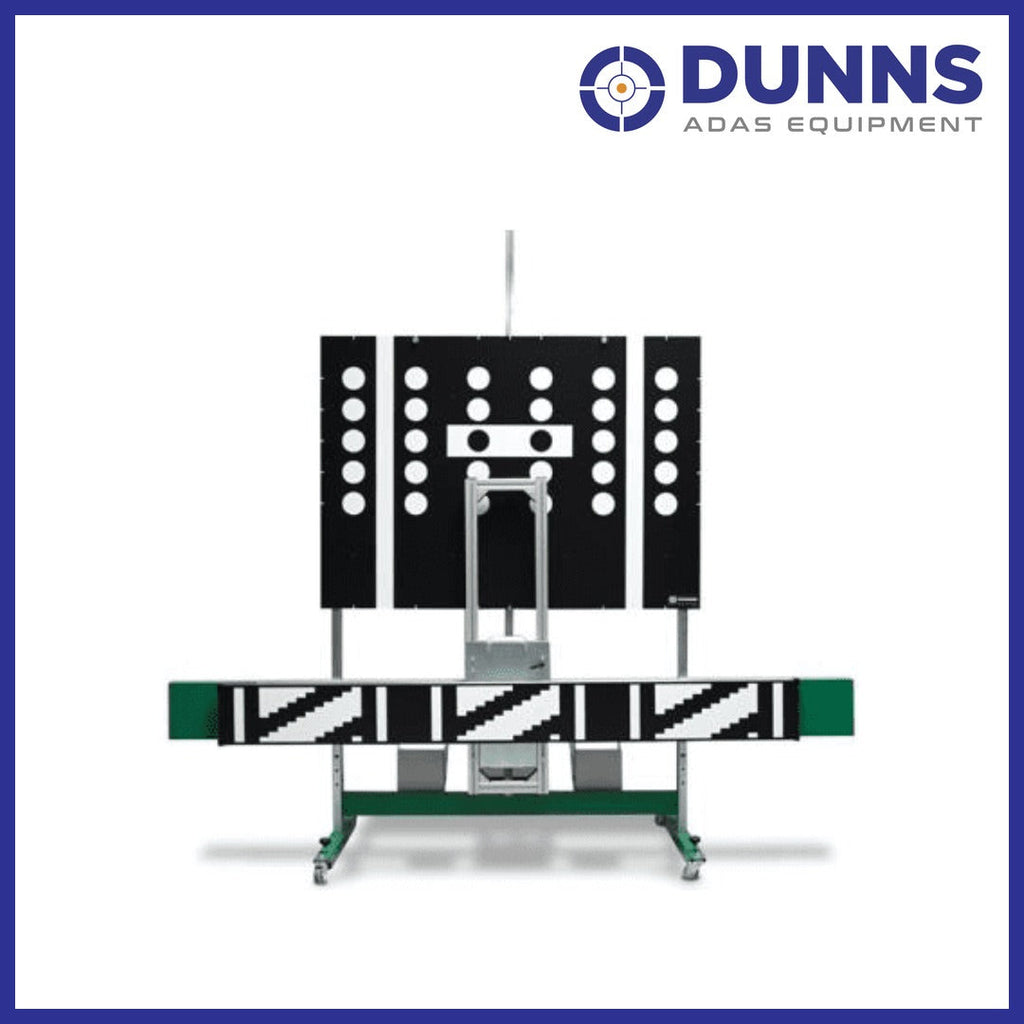

The Hella Gutmann Laser Sensor Reference Panel (Audi CSC 5-01) is a specialist ADAS calibration target for accurately aligning the laser/LiDAR sensors fitted to modern Audi models. Engineered with a continuously variable vertical adjustment mechanism, it enables precise positioning of the angular adjustment plate to achieve manufacturer-correct sensor alignment during repair and servicing work.

• Specialist reference panel for the calibration of laser (LiDAR) sensors across Audi models
• Continuously variable vertical movement for precise alignment of the angular adjustment plate
• Purpose-built target surface engineered for accurate laser scanner calibration on the latest Audi vehicles
• Compatible with the full Hella Gutmann CSC-Tool range: CSC-Tool / CSC-Tool SE and CSC-Tool Mobile
• Part of the modular Hella Gutmann CSC-Tool ADAS calibration ecosystem
• Supplied as the reference panel component — CSC-Tool base unit and mounting required separately
• Genuine Hella Gutmann accessory — Part No. 8PZ 010 624-961

Compatible Rigs: Hella Gutmann CSC-Tool SE | Hella Gutmann CSC-Tool Mobile
