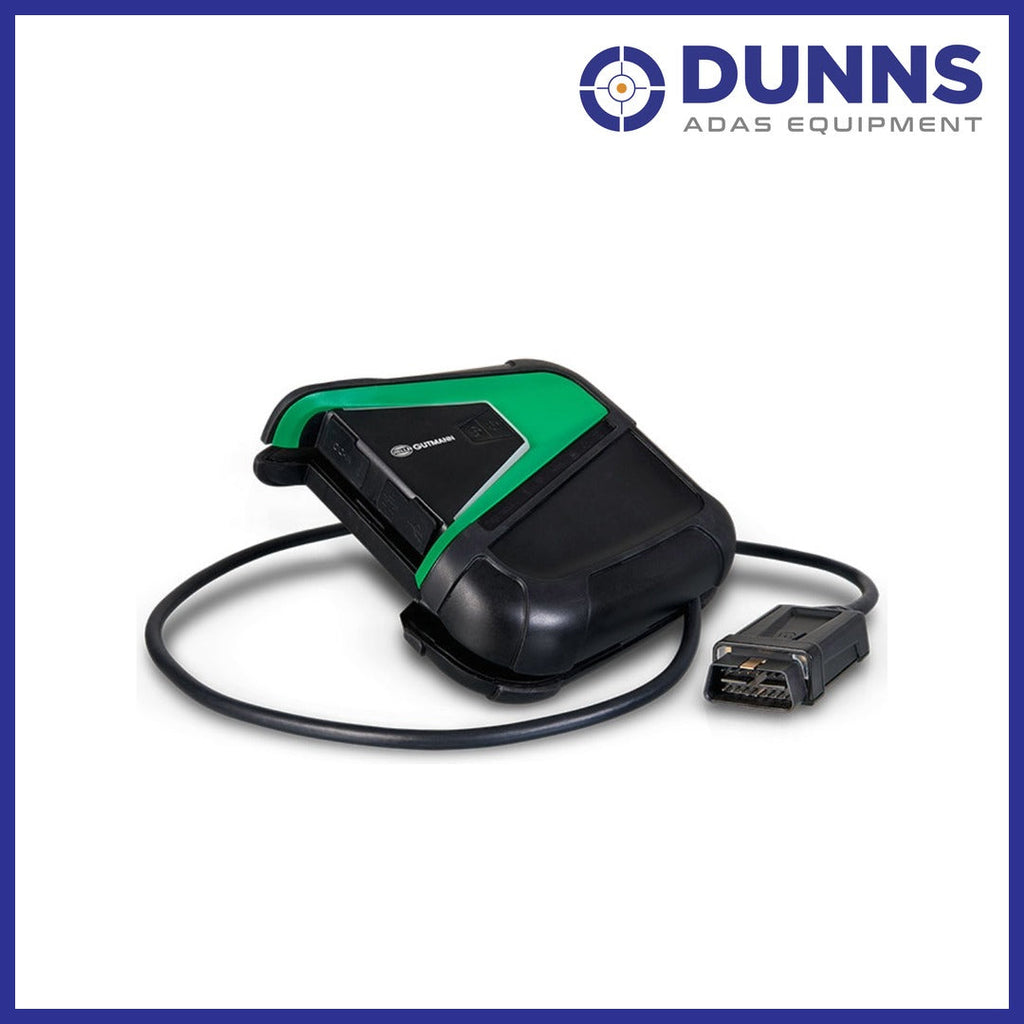

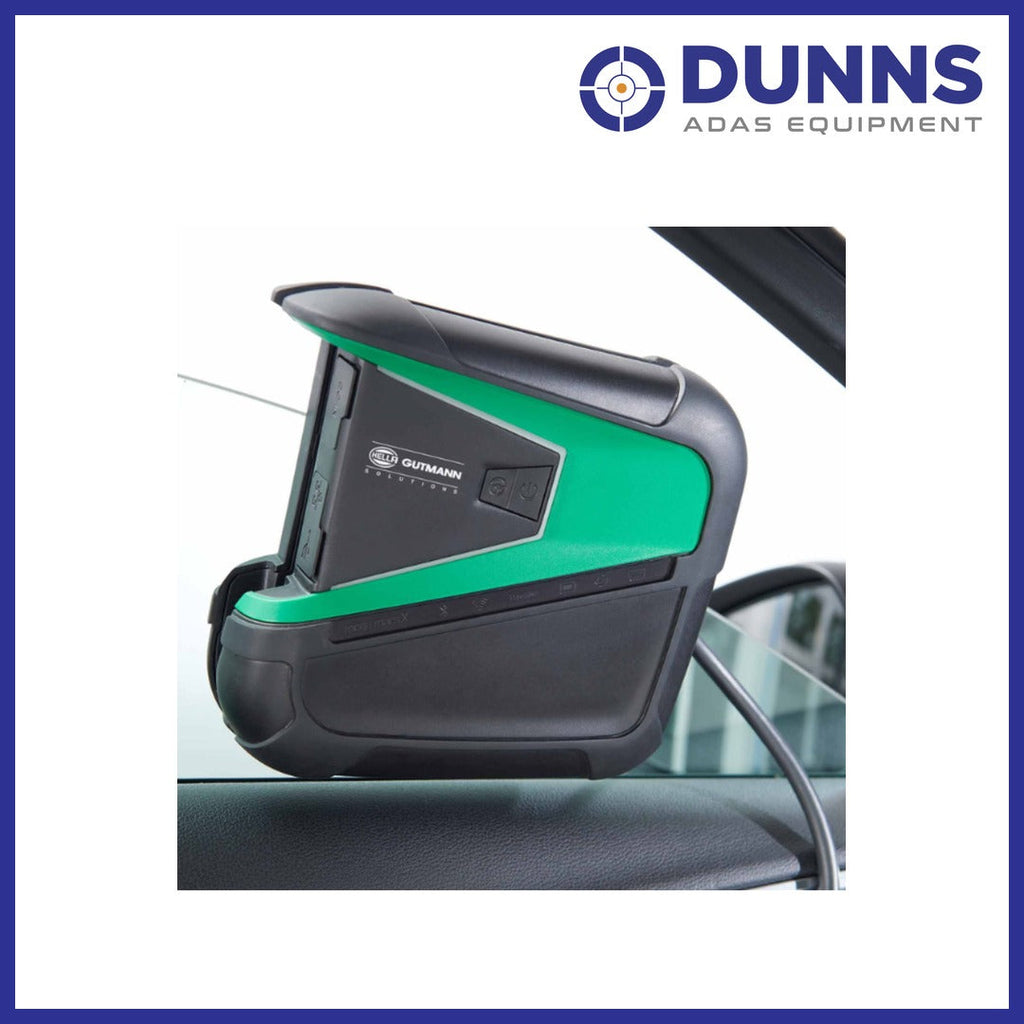

Hella Gutmann mega macs X – The All-in-One Car Translator

Just like the vehicles themselves, communication with them is changing. Hella Gutmann has been entirely re-thinking the world of data and diagnostics — and the result is the mega macs X: the all-in-one car translator.

Workshops should be able to decide individually which functions and technical data they need for multibrand diagnosis, and which hardware they want to use. What’s common practice today might be obsolete tomorrow. That’s no problem with mega macs X — it’s just a question of configuration.

Freedom of Choice at All Levels

The mega macs X gives you investment security and flexibility through one hardware platform for all needs. The display and operating unit — tablet, PC, laptop — is independent from the hardware and diagnostic software, meaning you use your preferred device and upgrade it on your own terms.

Key Features

• Investment security and flexibility — one hardware for all diagnostic needs, future-proof by design
• Display and operating unit (tablet, PC, etc.) is independent from the hardware and diagnostic software — use your preferred device
• Supports DoIP and CAN FD for full coverage of the latest vehicle communication protocols
• Inductive charging tray included — Hella Gutmann standard inductive charging (not QI)
• Integrated LED lighting at the OBD plug for easy connection in low-light conditions
• Supports 12V and 24V vehicles — suitable for cars, vans and light commercial vehicles
• Expandable with measuring technology modules for enhanced workshop capability

Technical Specifications

mega macs X

• Processor: ARM dual processor 1.2 GHz
• RAM: 2 GB DDR3
• Storage: 32 GB eMMC
• Interfaces: USB-C, DC-In, Ethernet
• Supply voltage: 12V – 24V DC
• Operating temperature: 0 to 45°C
• Storage temperature: -10 to +50°C
• Weight: 1,420g
• Dimensions: 210 × 193 × 80mm (H × W × D)

Charging Tray

• Charging: Inductive energy transfer (Hella Gutmann standard — not QI)
• Supply voltage: 15V DC
• Operating temperature: 0 to 45°C
• Storage temperature: -10 to +50°C
• Weight: 590g
• Dimensions: 164 × 164 × 37mm (H × W × D)

What’s in the Box

• mega macs X unit
• Inductive charging tray
• Power adapter
• Power cord
• USB cable
• Quick start guide
