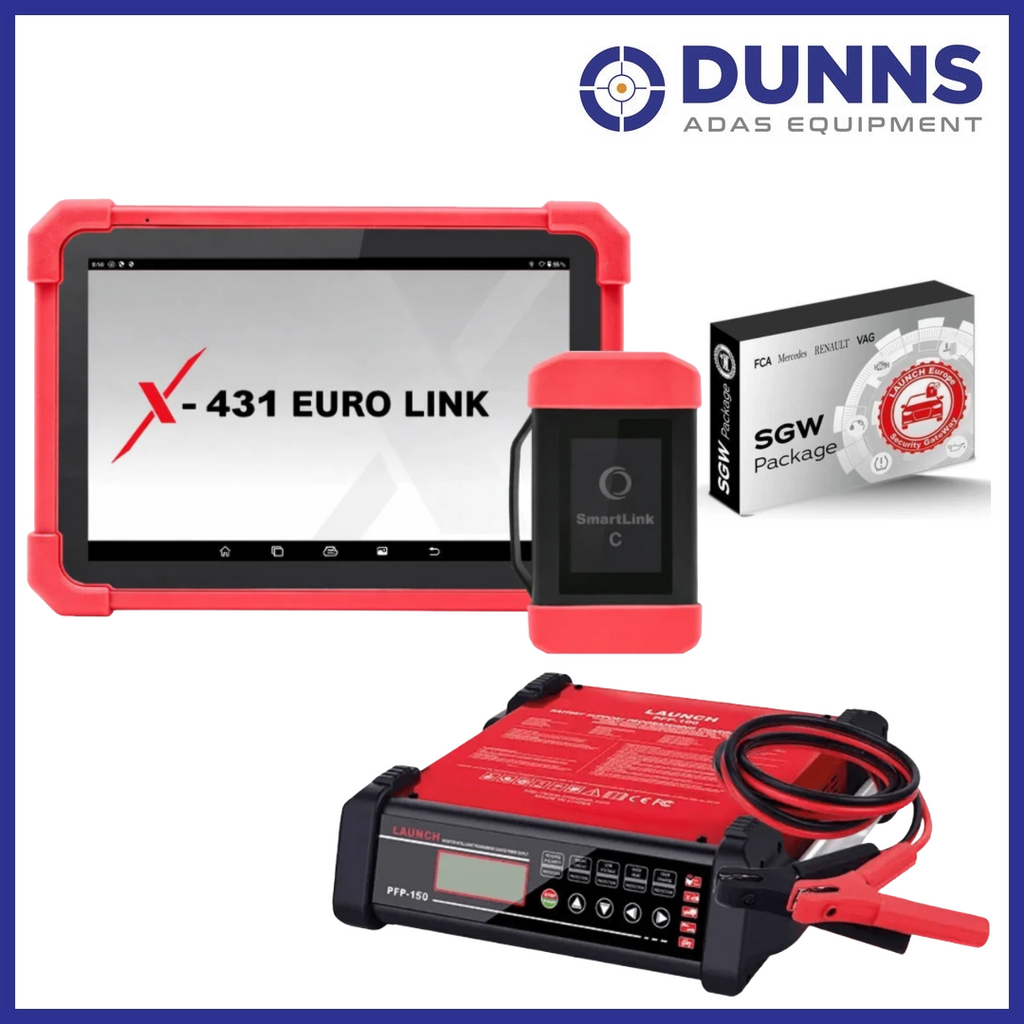

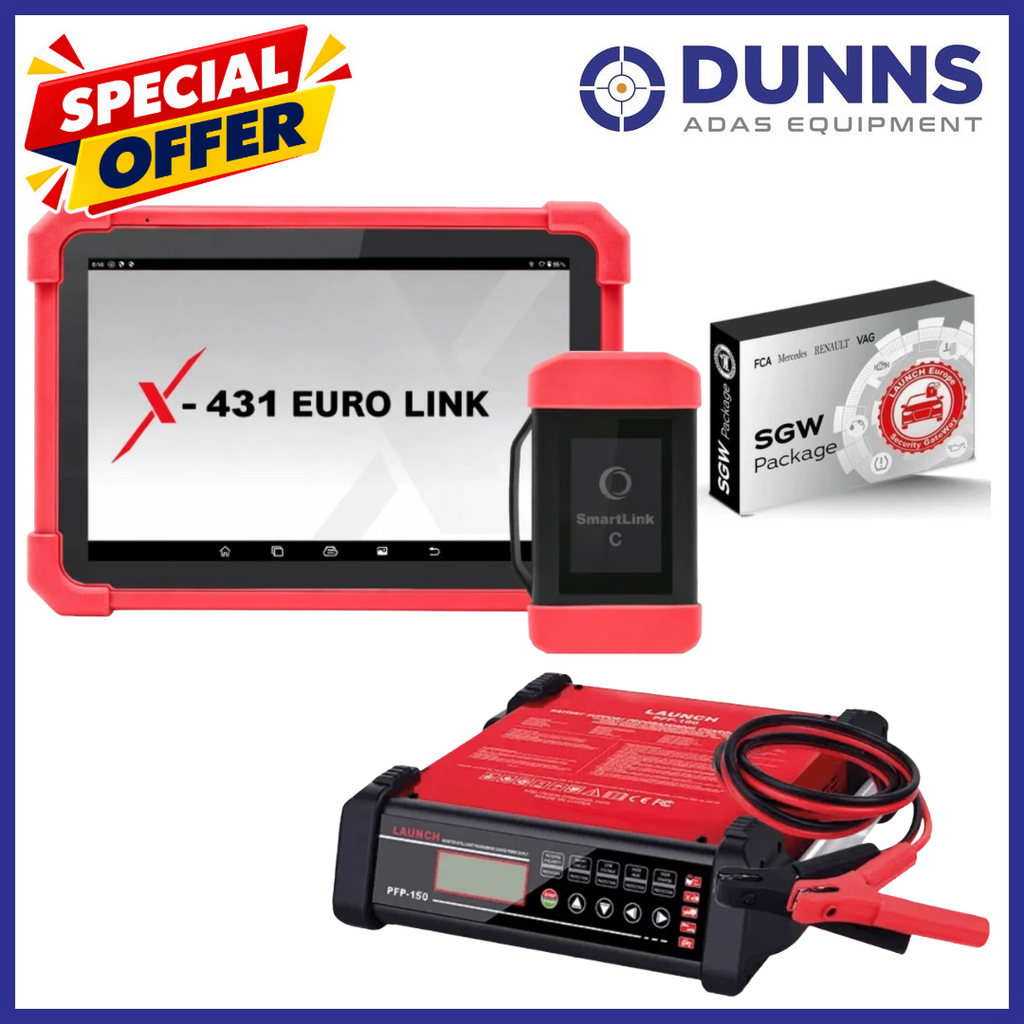

Launch X-431 Euro Link + PFP-150 Bundle | 2yr Software, 1yr Smart & Electronic DB, 1yr SGW
Launch X-431 Euro Link + PFP-150 Bundle | 2yr Software, 1yr Smart & Electronic DB, 1yr SGW
Euro Link with 2 Year Software & 1 Year Smart and Electronic Database Access • 1 Year SGW Package • PFP-150 Battery Support Unit
⚠ ONLY AVAILABLE TILL 30/9/26
The Complete Diagnostic Bundle
The Launch X-431 Euro Link pairs with the Launch PFP-150 150A Battery Support Unit — dealer-level diagnostics with stable ECU programming power, all in one package. Built for independent garages, mobile technicians and busy workshop environments.
Launch X-431 Euro Link — Professional Handheld Diagnostic Scanner
The X-431 Euro Link combines a wireless SmartLink VCI with full-system coverage and ADAS calibration integration, delivering dealer-level diagnostics across cars, light vans and EV/hybrid platforms in a compact, all-day workshop tool.
- ✓ Supplied with 2 Years Software Updates & Warranty
- ✓ 1 Year Smart & Electronic Database Access included
- ✓ 1 Year SGW Package — Security Gateway authentication for all supported manufacturers
- ✓ Wireless SmartLink VCI supporting DoIP and J2534 pass-thru for full-system communication
- ✓ 36 specialised service functions — fault code analysis, live data, activation tests, coding and adaptations
- ✓ Broad vehicle coverage — light vehicles, 12V/24V diagnostics and dedicated EV/hybrid support
- ✓ ADAS-ready — direct integration with the X-431 ADAS PRO+ for guided radar and camera calibration
- ✓ 6,300mAh battery, dual-band Wi-Fi, Bluetooth, remote diagnosis and CloudPrint connectivity
Technical Specifications
| Specification | Detail |
|---|---|
| Screen | 10.1-inch HD touchscreen |
| Processor | 2.0GHz quad-core |
| RAM | 4GB |
| Storage | 128GB |
| OS | Android 10.0 |
| VCI | Wireless SmartLink VCI |
| Protocols | DoIP, J2534 pass-thru, CAN, K-Line and more |
| Service Functions | 36 specialised functions |
| Vehicle Coverage | Light vehicles, 12V/24V, EV/hybrid |
| ADAS Integration | X-431 ADAS PRO+ compatible |
| Battery | 6,300mAh |
| Wi-Fi | Dual-band 2.4GHz / 5GHz |
| Connectivity | Bluetooth, remote diagnosis, CloudPrint |
Launch PFP-150 — 150A Battery Support Unit
ECU reprogramming and flashing demands stable, uninterrupted power. The PFP-150 delivers a constant 150A output throughout every programming procedure — exactly as required by vehicle manufacturers — protecting against errors, incomplete programming and costly ECU damage.
- ✓ 150A constant output — stable power throughout ECU programming and flashing
- ✓ Adjustable voltage: 12V–14.8V — precise control for a wide range of manufacturer requirements
- ✓ Three operating modes — Programming, Charging and Showroom Mode
- ✓ Universal battery compatibility — Wet, AGM, GEL and Lithium
- ✓ Comprehensive safety protection — overheating, overcurrent and short-circuit protection
- ✓ Automatic shutdown & alarm to prevent overcharging damage
PFP-150 Specifications
| Specification | Detail |
|---|---|
| Input Voltage | 110–220V AC |
| Maximum Output Current | 150A RMS |
| Maximum Starting Current | 60–300A |
| Power Output | 1,800W |
| Charging Voltage | 12V |
| Charging Current | 10–120A |
| Adjustable Voltage Range | 12V–14.8V |
| Battery Capacity Range | 10–1,800Ah |
| Battery Types Supported | Wet, AGM, GEL, Lithium |
| Cable Length | 2.5m |
| Dimensions | 430 × 350 × 140mm |
| Weight | 8.5kg |
Operating Modes
- Programming Mode — maintains precise, stable voltage during ECU reprogramming and flashing to manufacturer specification
- Charging Mode — charges and conditions the vehicle battery ahead of or after diagnostic work
- Showroom Mode — powers vehicle electrics without engine running, ideal for demonstrations and PDI checks
UK Spec, Warranty & Support
Supplied directly by Dunns Automotive — official Launch UK distributor. All items in this bundle come with a full UK warranty and UK-based technical support. No grey imports, no overseas delays — our team is always on hand if you need assistance.
