Launch X-431 Euro + PFP-150 Bundle | 2 Year Silver Subscription
Launch X-431 Euro + PFP-150 Bundle | 2 Year Silver Subscription

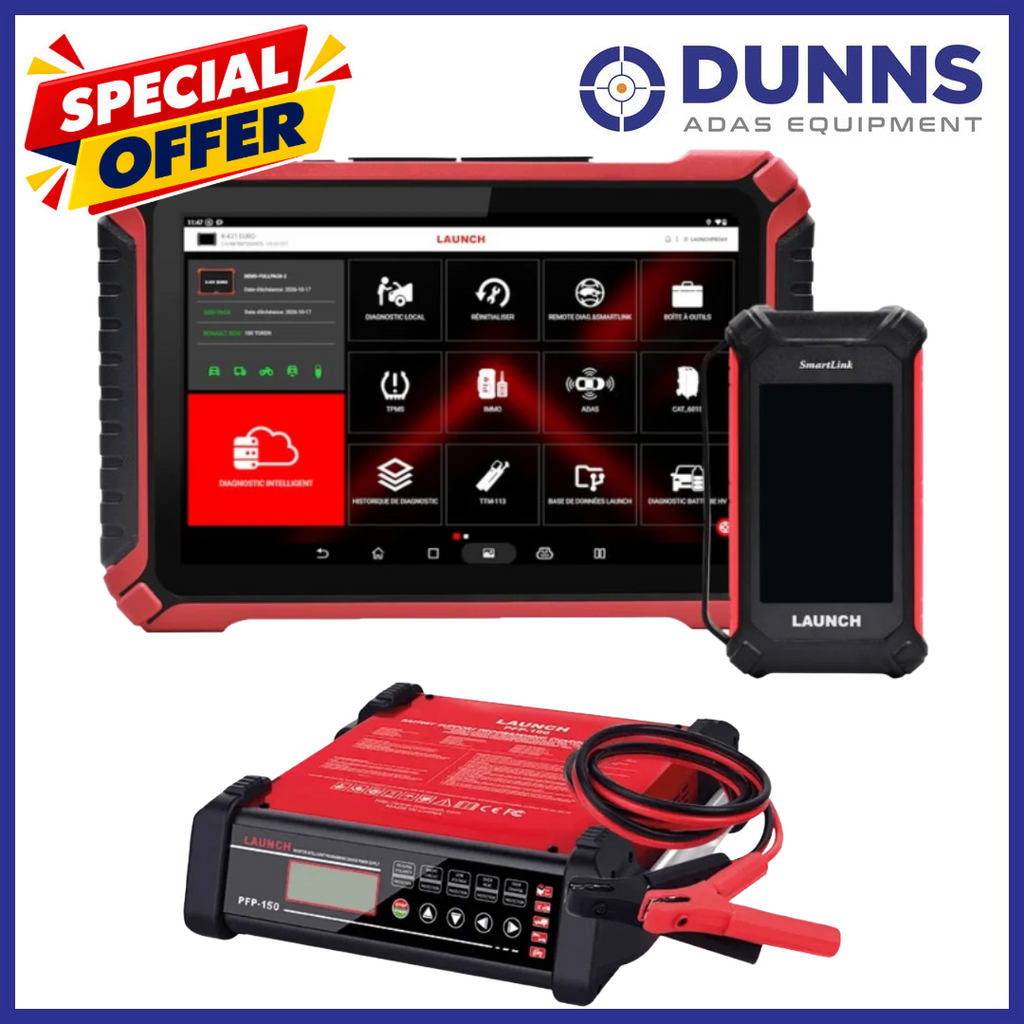

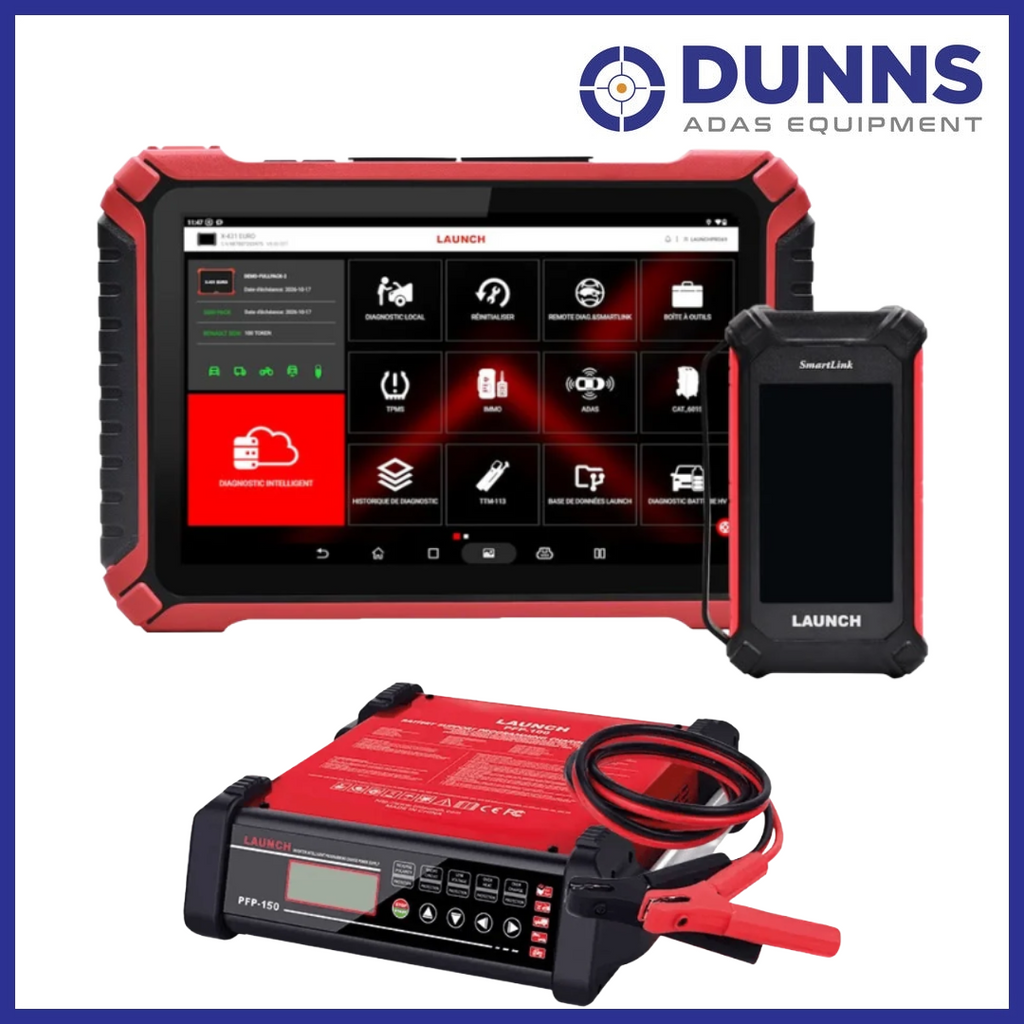

X-431 Euro with 2 Year Silver Subscription & PFP-150 Battery Support Unit
⚠ ONLY AVAILABLE TILL 30/9/26
The Complete High-End Diagnostic Bundle
The Launch X-431 Euro paired with the Launch PFP-150 150A Battery Support Unit — a premium diagnostic platform with stable ECU programming power, built for professional workshops that demand the very best.
Launch X-431 Euro — Professional Diagnostic Platform
The X-431 Euro is a high-end professional diagnostic platform combining powerful hardware with a flexible, modular software architecture. Rather than replacing your tablet as vehicle technology evolves, the X-431 Euro lets you upgrade and expand software capability on the same hardware platform.
Hardware Specifications
| Specification | Detail |
|---|---|
| OS | Android 13 |
| Processor | 2.0 GHz Octa-Core |
| RAM / Storage | 12 GB / 512 GB |
| Display | 13.3" — 2560 × 1600 |
| Battery | 9,360 mAh |
| Camera | 8 MP (front) / 20 MP (rear) |
| Connectivity | Wi-Fi 2.4 / 5 GHz, USB-C, USB-A, Mini HDMI, MicroSD |
| VCI | SmartLink C |
| Stand | 180° adjustable |
Silver Subscription — What's Included
- ✓ Full-system diagnostics — read/clear faults, live data, service functions, confirmation tests
- ✓ ECU coding
- ✓ Secure Gateway (SGW) — FCA, VAG, Mercedes-Benz, Renault
- ✓ VAG Guided Functions
- ✓ SmartLink® Remote Diagnosis (pay-per-use)
- ✓ Dynamic ADAS calibration
- ✓ Online matching and coding functions
- ✓ Haynes CARset Pro database
Advanced Diagnostic Technology
- ✓ Multi-system data streaming — monitor multiple ECUs simultaneously
- ✓ Topology mapping — graphical view of vehicle network architecture
- ✓ DoIP & CAN-FD — supports modern high-speed communication protocols
- ✓ Bi-directional controls — active component testing where supported
- ✓ Integrated repair information — via CARset database (Silver and Gold)
Optional Accessories
Oscilloscope / ScopeBox • SensorBox • X-PROG 3 Key & Gearbox Programming • Bluetooth Battery Tester • Videoscope • TPMS Programmer • HD / Truck Diagnostics • Motorcycle Diagnostics • ADAS Calibration Equipment • EV High-Voltage Diagnostic Equipment

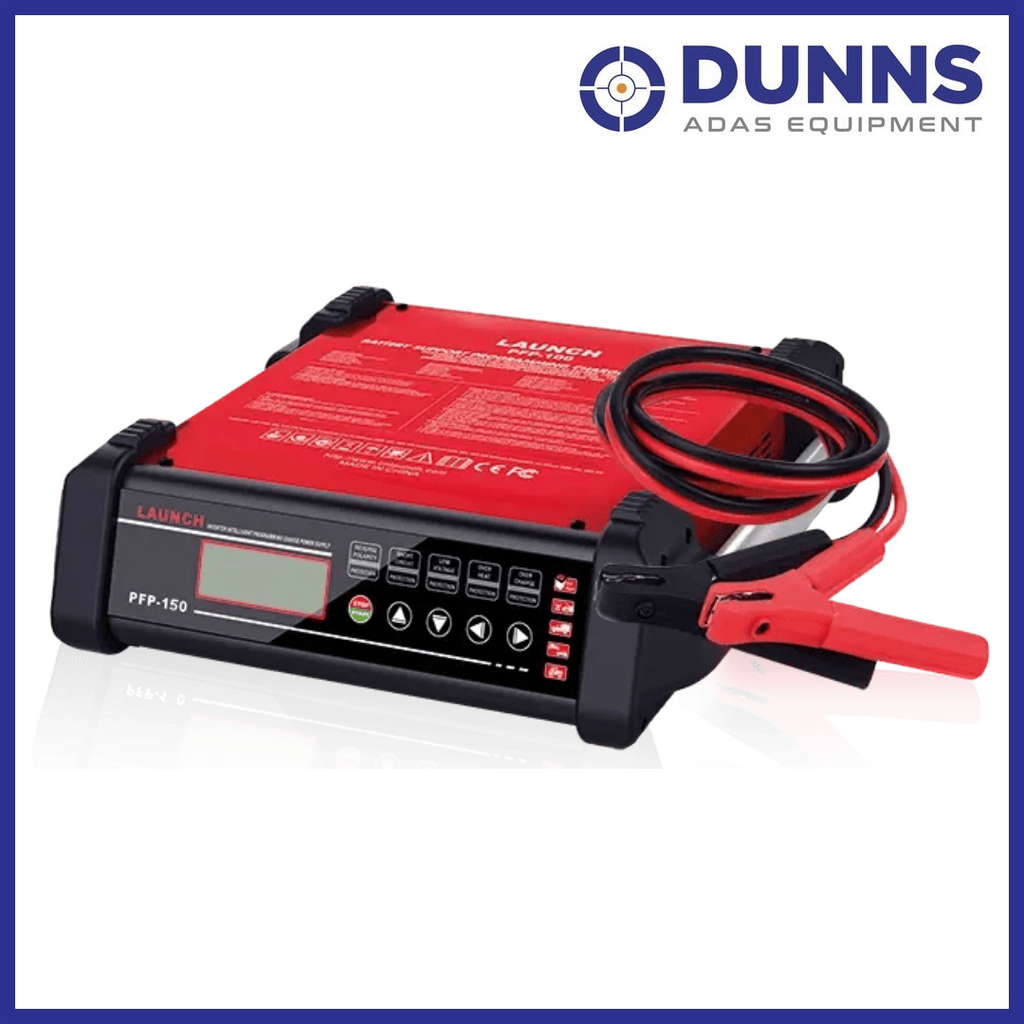

Launch PFP-150 — 150A Battery Support Unit
ECU reprogramming and flashing demands stable, uninterrupted power. The PFP-150 delivers a constant 150A output throughout every programming procedure — exactly as required by vehicle manufacturers — protecting against errors, incomplete programming and costly ECU damage.
- ✓ 150A constant output — stable power throughout ECU programming and flashing
- ✓ Adjustable voltage: 12V–14.8V — precise control for a wide range of manufacturer requirements
- ✓ Three operating modes — Programming, Charging and Showroom Mode
- ✓ Universal battery compatibility — Wet, AGM, GEL and Lithium
- ✓ Comprehensive safety protection — overheating, overcurrent and short-circuit protection
- ✓ Automatic shutdown & alarm to prevent overcharging damage
PFP-150 Specifications
| Specification | Detail |
|---|---|
| Input Voltage | 110–220V AC |
| Maximum Output Current | 150A RMS |
| Maximum Starting Current | 60–300A |
| Power Output | 1,800W |
| Charging Voltage | 12V |
| Charging Current | 10–120A |
| Adjustable Voltage Range | 12V–14.8V |
| Battery Capacity Range | 10–1,800Ah |
| Battery Types Supported | Wet, AGM, GEL, Lithium |
| Cable Length | 2.5m |
| Dimensions | 430 × 350 × 140mm |
| Weight | 8.5kg |
Operating Modes
- Programming Mode — maintains precise, stable voltage during ECU reprogramming and flashing to manufacturer specification
- Charging Mode — charges and conditions the vehicle battery ahead of or after diagnostic work
- Showroom Mode — powers vehicle electrics without engine running, ideal for demonstrations and PDI checks
UK Spec, Warranty & Support
This is a UK specification tool supplied directly by Dunns Automotive — official Launch UK distributor. All tools come with a UK warranty and full UK-based technical support from Launch UK.
Software package availability, vehicle coverage, functions, online services, SGW access and programming capabilities can vary by manufacturer, model, market and software version. Always verify compatibility before carrying out a specific procedure.
