Topdon Video Scope Borescope (Mobile Phone)
Topdon Video Scope Borescope (Mobile Phone)
The Topdon Video Scope Borescope turns your smartphone into a professional inspection camera. With a slim 6mm articulating probe and joystick-guided 360° steering, it lets technicians see inside engines, evaporator boxes, catalysts and other hidden cavities — ideal for automotive workshops and mobile technicians needing affordable, high-quality visual diagnostics.
- 6mm probe camera with 1280×720 resolution, 100° field of view and 20mm depth of field for clear, detailed imaging
- 360° articulation with 210° maximum bending angle, controlled via an intuitive joystick for navigating tight spaces and pipelines
- 1-metre insertion tube with 4 adjustable LED brightness settings to illuminate dark, enclosed areas
- Connects to Android and iOS phones — Type-C, Micro USB and Lightning cables all included
- Built-in 2600mAh battery delivers up to 120 minutes of use with reverse charging to top up your phone
- High-temperature probe alarm and auto power-off for added protection
- Supplied with charger, phone holder, strap, protective case and manual
Workshop Applications
The Video Scope is ideal for inspecting areas that are impossible to see without disassembly:

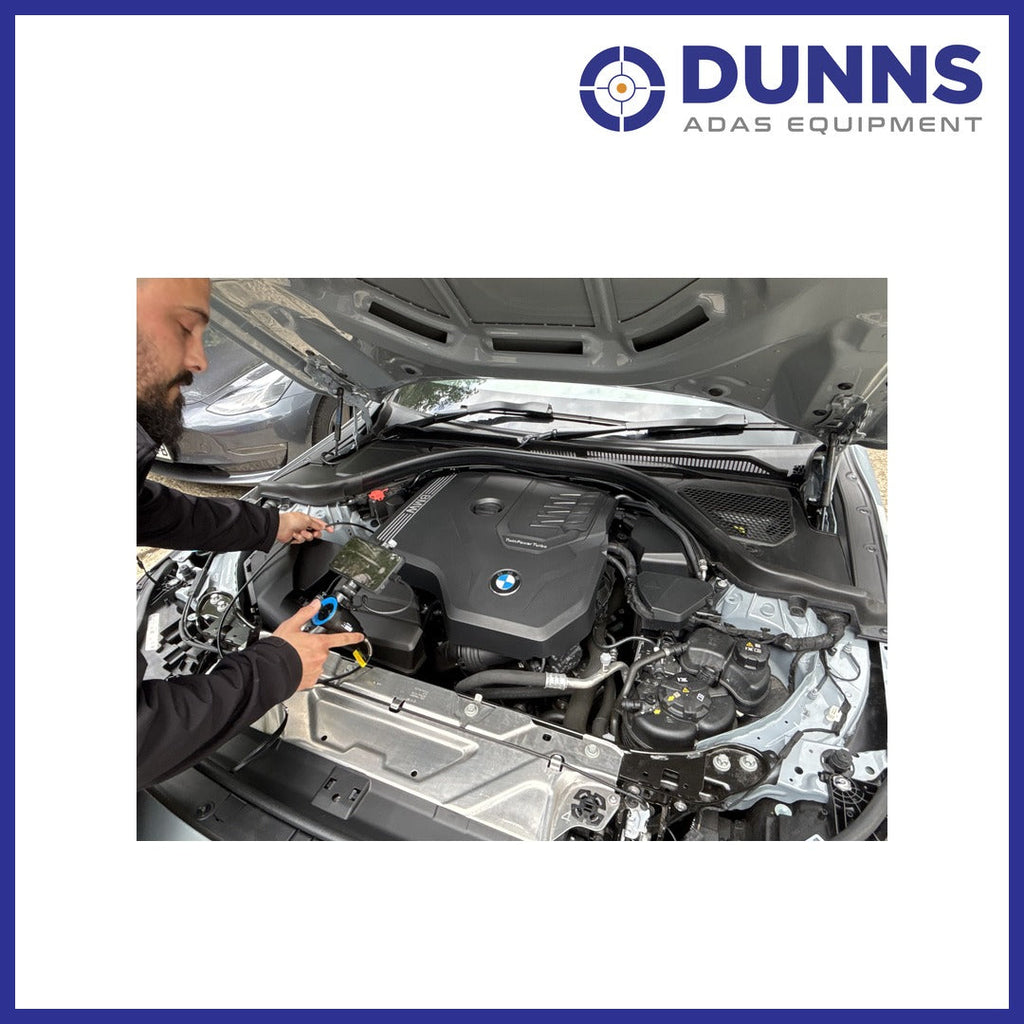

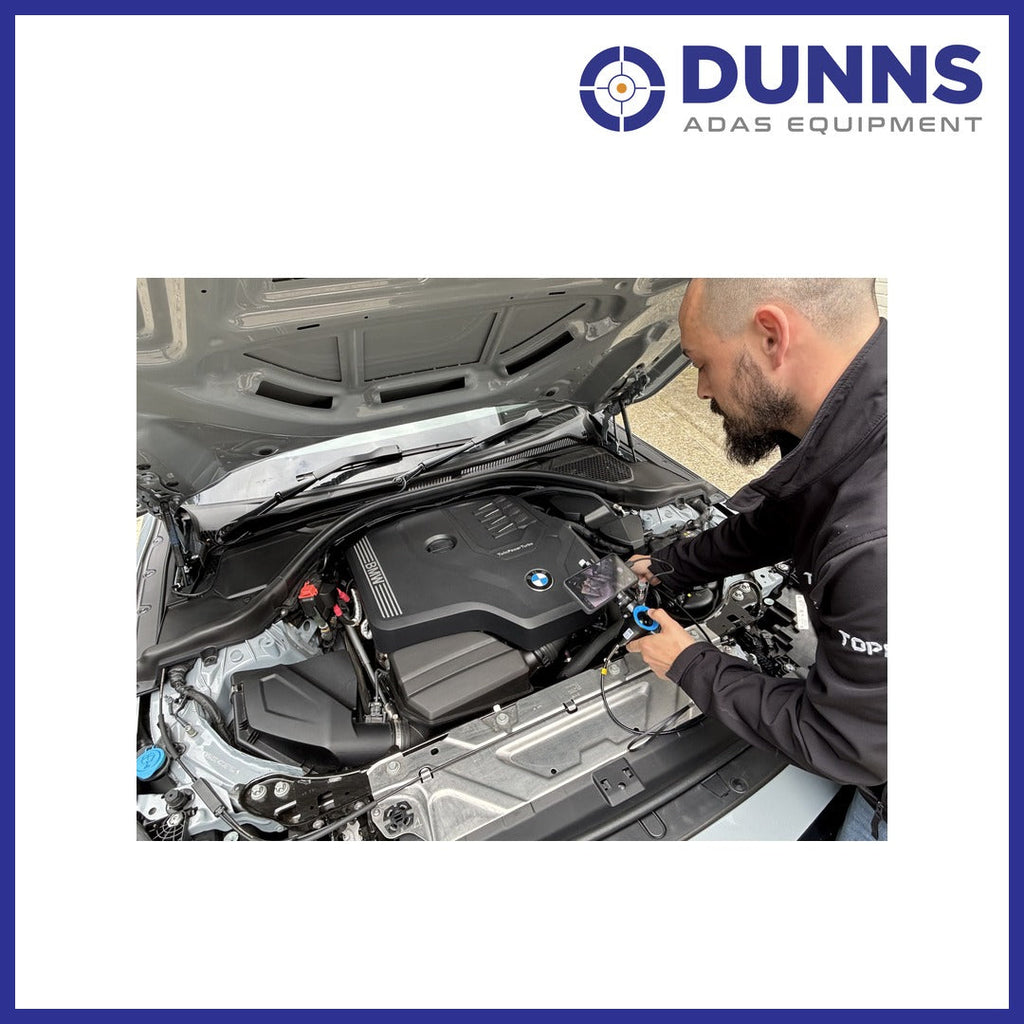

- Engine internals — cylinder bores, valves, pistons and combustion chambers via spark plug hole
- Catalytic converters — check substrate condition before replacement
- HVAC evaporator boxes — inspect for mould, blockages and damage without dashboard removal
- Brake callipers and wheel arches — check pad wear and corrosion in tight spaces
- Bodywork cavities — inspect for water ingress, rust and hidden damage
- Pipework and hoses — internal condition checks without removal
Technical Specifications
| Specification | Detail |
|---|---|
| Probe diameter | 6mm |
| Resolution | 1280 × 720 |
| Field of view | 100° |
| Depth of field | 20mm |
| Articulation | 360° (210° max bend angle) |
| Insertion tube length | 1 metre |
| LED brightness settings | 4 adjustable levels |
| Battery | 2600mAh (up to 120 min use) |
| Reverse charging | Yes — charges connected phone |
| Compatibility | Android (Type-C, Micro USB) & iOS (Lightning) |
| In the box | Video Scope, Type-C cable, Micro USB cable, Lightning cable, charger, phone holder, strap, protective case, manual |
Complete Your Inspection Kit
- Topdon TC001 Thermal Camera — thermal imaging companion for hot-spot and electrical fault diagnosis
- Topdon CT100 Circuit Tester — fast voltage and continuity checks
- Topdon BTMobile ProS — battery and charging system tester
