Autel MaxiSYS IA900WA – Integrated Four-Wheel Alignment & ADAS Calibration System

£19,995 + VAT

The Autel MaxiSYS IA900WA is the first fully integrated ADAS calibration and four-wheel alignment system available at an accessible price point — a groundbreaking advancement for professional workshops, bodyshops and tyre centres.

Equipped with six high-resolution, self-calibrating cameras that work in conjunction with the frame, the IA900WA grants technicians precise optical measurements without the need to manually measure distances. The frame cameras actively monitor the vehicle’s height when on the lift, ensuring they consistently maintain a clear line of sight to their intended targets.

The IA900WA eliminates the trade-off between accuracy and efficiency, empowering shop owners with full control over their repair operations through a 24-inch touchscreen that mirrors the MaxiSYS Ultra’s display — delivering straightforward, user-friendly instructions that reduce work time and enhance shop efficiency.

• Six high-resolution, self-calibrating cameras — always accurate, every time
• Cameras automatically track vehicle height on the lift, maintaining line of sight to targets
• Robotic frame movement — crossbar adjusts automatically to the correct ADAS calibration height
• Precise optical measurement — no manual distance measuring required
• Compensates for uneven flooring
• 24-inch touchscreen monitor simulcast from compatible MaxiSYS diagnostic tablet
• MaxiSYS Ultra tablet cradle with controls
• MaxiSYS interface instead of PC for wheel alignment
• Four-wheel alignment accuracy to 0.02 degrees
• Full ADAS system calibration coverage

The First Fully Integrated ADAS & Wheel Alignment System

The Autel IA900WA represents a paradigm shift in calibration procedures. By combining four-wheel alignment and ADAS calibration in a single robotic frame, workshops no longer need separate systems for each task. The IA900WA handles both from one efficient station, making it ideal for bodyshops, tyre fitters and general garages working on modern vehicles.

For workshops that need ADAS calibration without wheel alignment, see the Autel IA600 Mobile ADAS Calibration System.

Six High-Resolution Self-Calibrating Cameras

The IA900WA’s six high-resolution cameras are self-calibrating — delivering precise optical measurements every time without manual intervention. The cameras automatically track the vehicle’s height when on the lift, maintaining a clear line of sight to their targets throughout the process. This eliminates the need for technicians to manually measure distances and compensates for uneven flooring, significantly reducing setup time and the risk of human error.

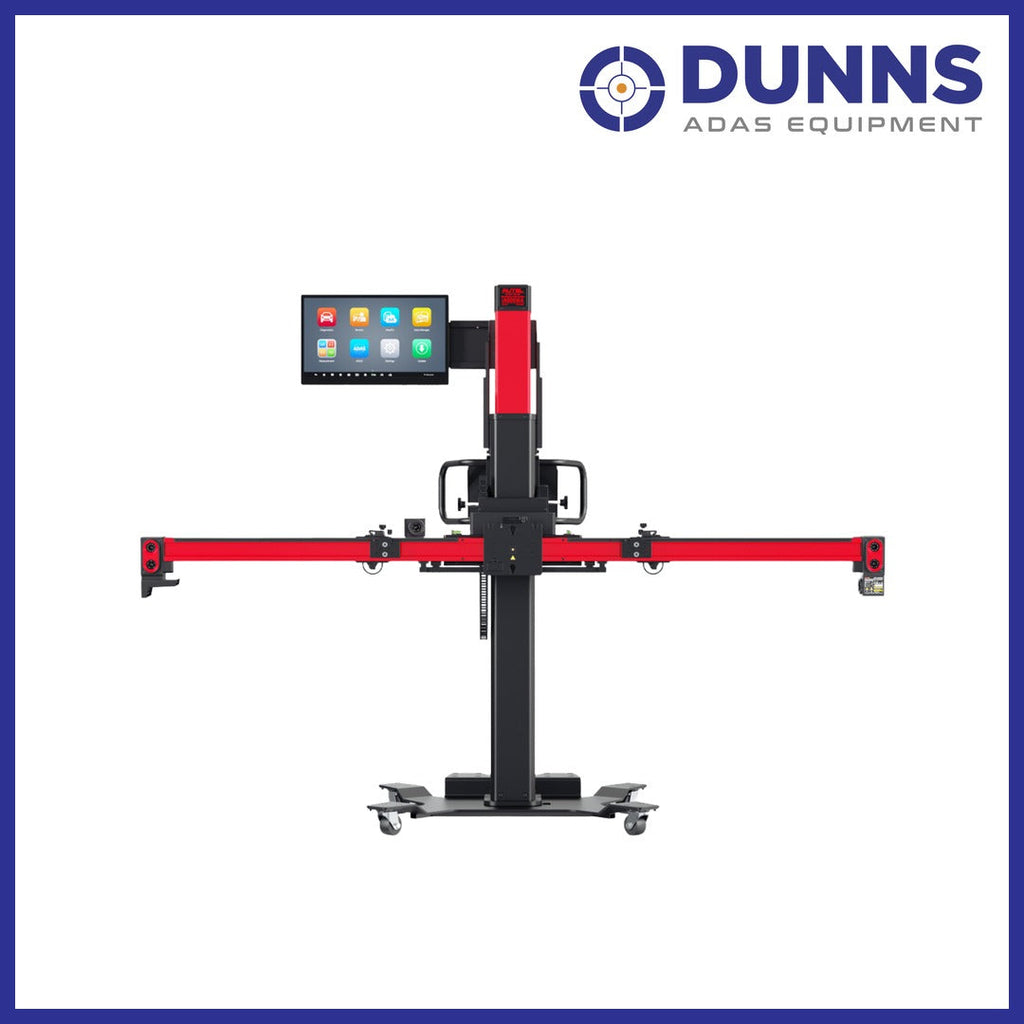

Robotic Frame Movement

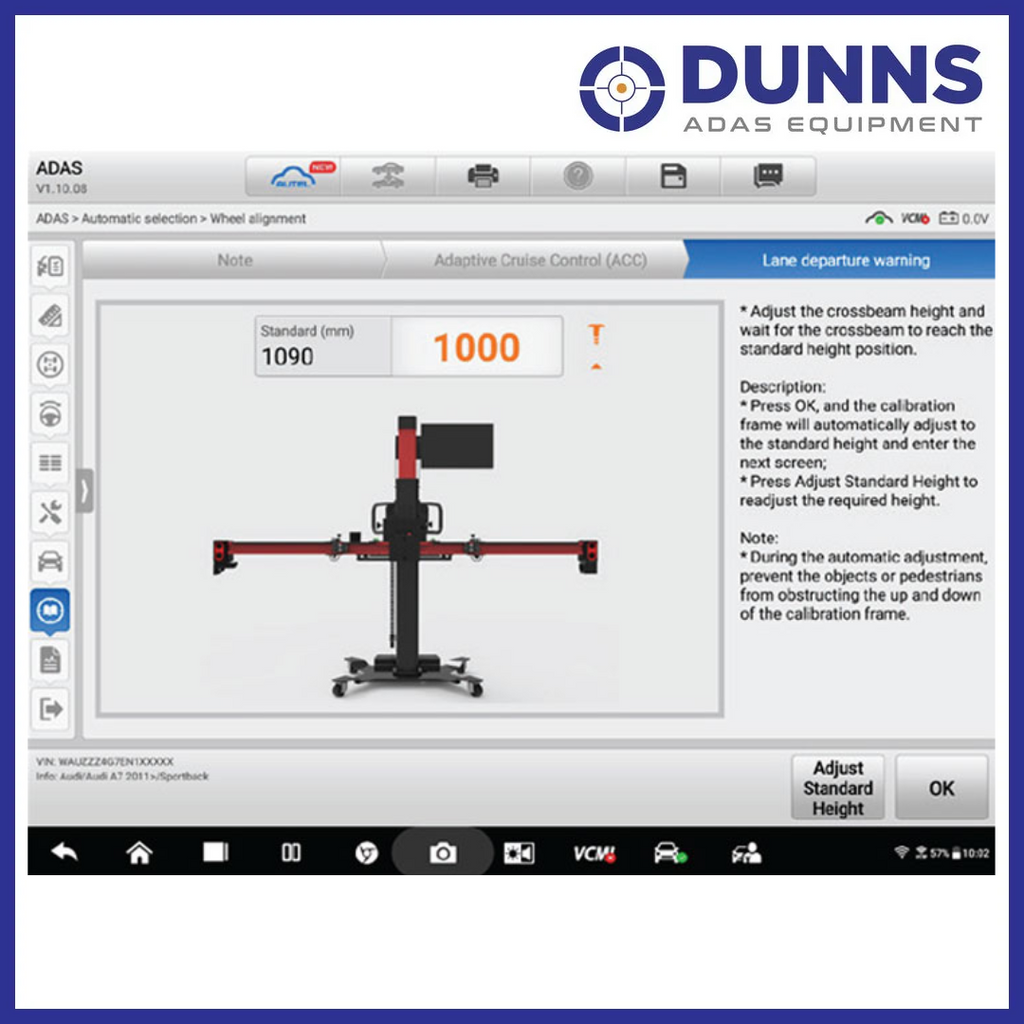

The IA900WA features a robotic crossbar that adjusts automatically to the correct ADAS calibration height for each vehicle and procedure. This removes the need for manual frame adjustment, speeding up the calibration process and ensuring consistent, repeatable results across every job.

24-Inch Touchscreen – MaxiSYS Interface for Wheel Alignment

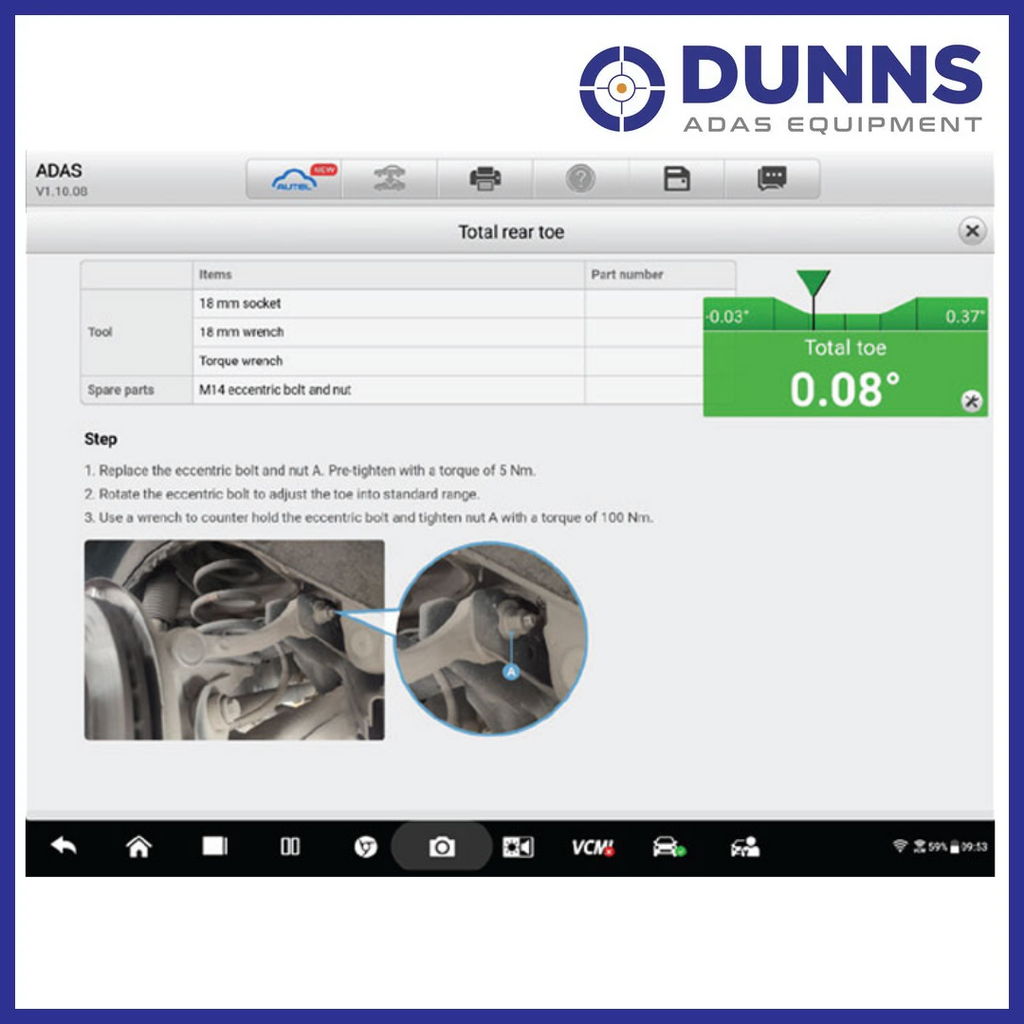

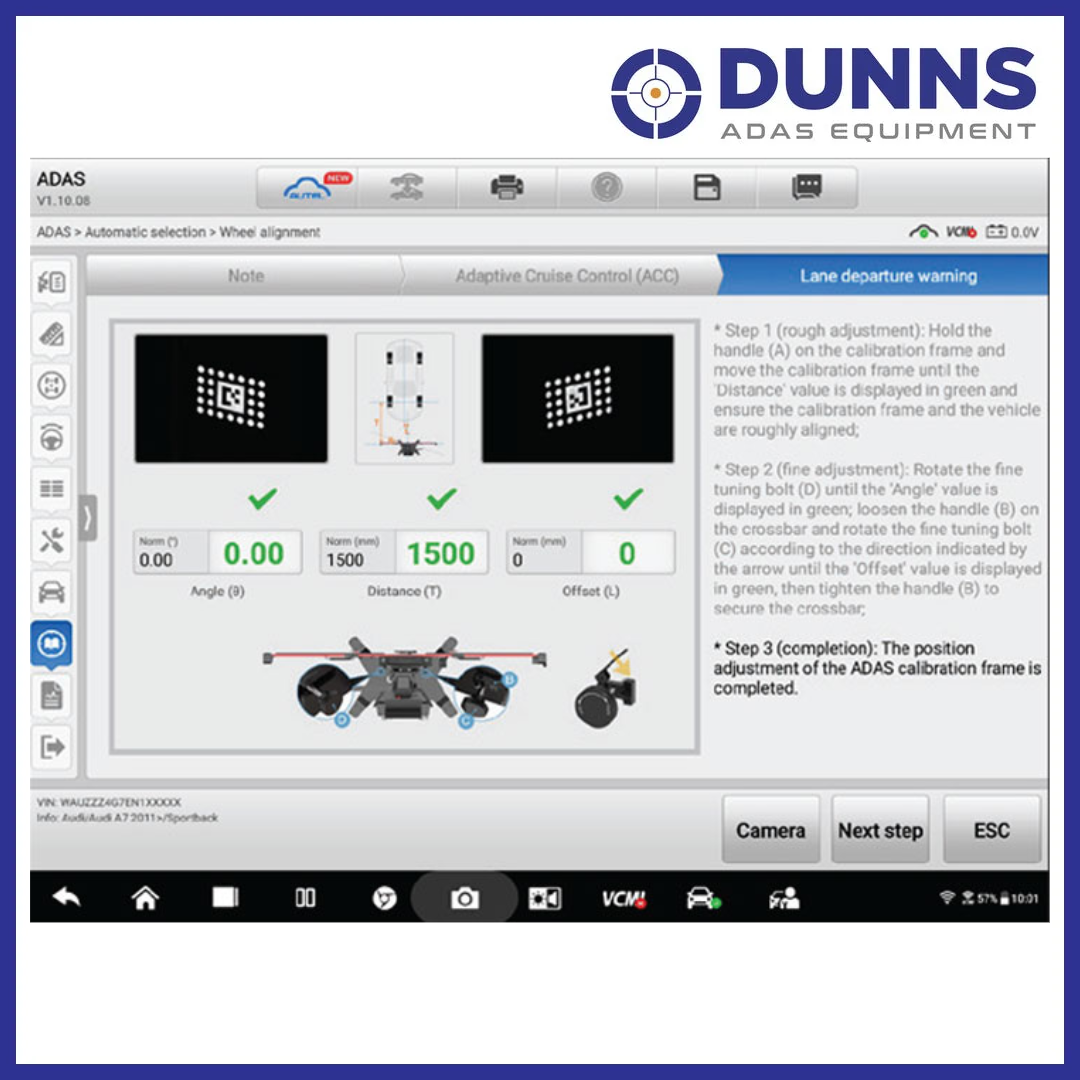

The IA900WA is equipped with a 24-inch touchscreen monitor that simulcasts from the compatible MaxiSYS diagnostic tablet, mirroring its display for easy technician operation. The MaxiSYS interface replaces a traditional PC for wheel alignment, providing illustrated alignment instructions, live readings, required tools and adjustment locations — all in one clear, user-friendly display.

Four-Wheel Alignment

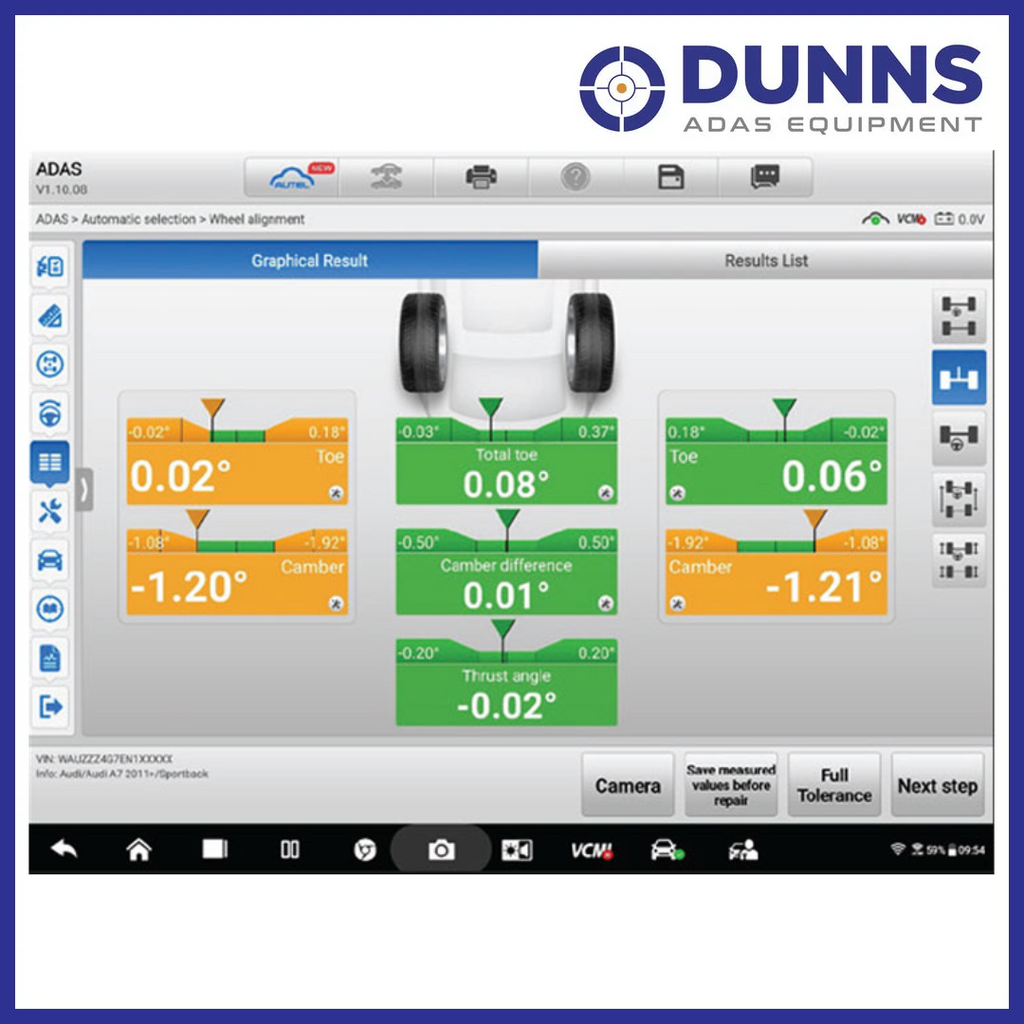

The IA900WA delivers professional four-wheel alignment with accuracy to 0.02 degrees, with on-screen display of camber, caster, toe, thrust angle, SAI, toe-out on turns and more. Alignment coverage spans US, Asian and European vehicles from 1996 onwards.

ADAS Calibration Coverage

The IA900WA supports calibration of major ADAS systems including:

• Lane Departure Warning (LDW)
• Adaptive Cruise Control (ACC)
• Blind Spot Detection (BSD)
• Around View Monitor (AVM)
• Rear Collision Warning
• Night Vision
• LiDAR

Compatible Autel Diagnostic Tablets

The IA900WA is compatible with the following Autel MaxiSYS diagnostic tablets, which simulcast to the 24-inch touchscreen monitor. Diagnostic tablets are sold separately.

• Autel MaxiSYS Ultra S2
• Autel MaxiSYS Ultra
• Autel MaxiSYS MS919 S2
• Autel MaxiSYS MS919
• Autel MaxiSYS MS909 S2
• Autel MaxiSYS MS909

What’s Included

Frame & Equipment

• IA900WA robotic calibration and alignment frame
• 24-inch touchscreen monitor
• Distance target
• 4 wheel clamps
• Steering wheel blocker
• Brake lock
• Wedge lock

Calibration Targets & Accessories

• ACC Calibration Mirror
• Volkswagen LDW Target Board
• Mercedes-Benz LDW System
• Nissan LDW System
• Honda LDW System
• Nissan / Infiniti LDW System
• Hyundai / KIA LDW Pattern
• Toyota / Lexus LDW System
• Hyundai / KIA / Jeep / Fiat LDW Pattern

Autel IA900WA – Frequently Asked Questions

What is the Autel IA900WA?

The Autel MaxiSYS IA900WA is the first fully integrated ADAS calibration and four-wheel alignment system at an accessible price point. It combines six self-calibrating HD cameras, a robotic frame, a 24-inch touchscreen and MaxiSYS interface to deliver precise, repeatable alignment and ADAS calibration from a single station.

Does the IA900WA require manual distance measurement?

No. The IA900WA eliminates the need for manual distance measuring. Its six high-resolution cameras provide precise optical measurement automatically, and the system compensates for uneven flooring.

What is the wheel alignment accuracy of the IA900WA?

The IA900WA delivers four-wheel alignment accuracy to 0.02 degrees.

What ADAS systems can the IA900WA calibrate?

The IA900WA supports LDW, ACC, BSD, AVM, Rear Collision Warning, Night Vision and LiDAR calibration, subject to vehicle coverage and required targets.

What is the difference between the IA900WA and the IA600?

The IA600 is a portable ADAS calibration system without wheel alignment capability. The IA900WA is a fixed workshop system combining full four-wheel alignment with ADAS calibration in a single robotic frame.

Which diagnostic tablets are compatible with the IA900WA?

The IA900WA is compatible with the MaxiSYS Ultra S2, MaxiSYS Ultra, MS919 S2, MS919, MS909 S2 and MS909. Diagnostic tablets are sold separately.

Why Buy the Autel IA900WA from Dunns Automotive?

• UK-based ADAS and wheel alignment specialists — genuine Autel UK product with full UK warranty
• Real-world diagnostic, alignment and ADAS experience
• Ongoing technical support from our team
• Training and IMI pathway available
• Practical advice on equipment selection and workshop setup
• Free UK mainland delivery

We don’t just sell ADAS equipment — we understand how it is used in real workshop environments.

Buy the Autel IA900WA in the UK

Autel MaxiSYS IA900WA Wheel Alignment & ADAS Calibration System – £19,995 + VAT

One system. Full four-wheel alignment. Complete ADAS calibration. Robotic frame. Six self-calibrating cameras. 24-inch touchscreen. No manual measuring. No trade-off between accuracy and efficiency.
